Same model may have multiple batches, images only for reference.

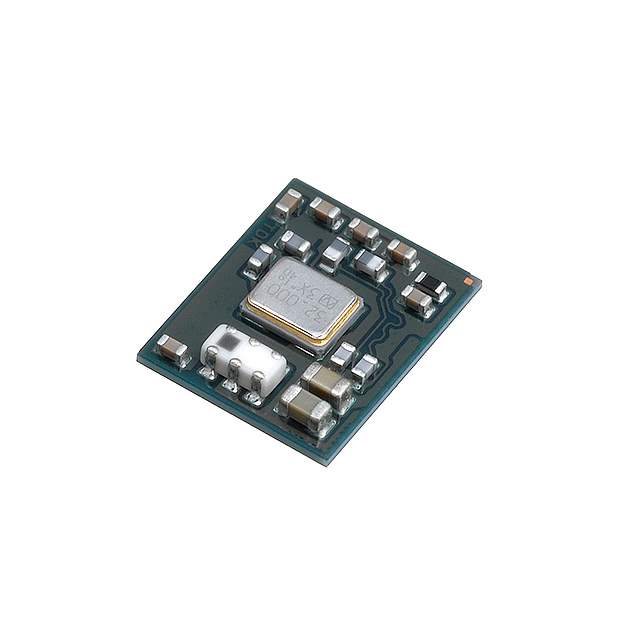

SESUB-PAN-T2541 Real Image
Same model may have multiple batches, images only for reference.

SESUB-PAN-T2541

Part No SESUB-PAN-T2541
Manufacturer TDK Corporation
Catalog RF Transceiver Modules
Description Bluetooth V4.0 Smart Single Mode Module / RF TXRX MOD BLUETOOTH CHIP ANT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer TDK Corporation
Packaging Reel
Part Status Active
RF Family/Standard Bluetooth
Protocol Bluetooth v4.0
Frequency 2.4GHz
Power - Output 0dBm
Sensitivity -70dBm (Max)
Serial Interfaces I2C, SPI, UART
Antenna Type Integrated, Chip
Memory Size 256kB Flash, 8kB RAM
Voltage - Supply 2 V ~ 3.6 V
Current - Receiving 19.8mA
Current - Transmitting 20.6mA
Mounting Type Surface Mount
Temperature Range - Operating -20°C ~ 70°C
Case Module
Win Source Part Number SESUB-PAN-T2541-318612
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name SESUB-PAN-T2541
Introduction Date February 06, 2014
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian SESUB-PAN-T2541 CAD Model

Description

TDK Corporation's SESUB-PAN-T2541-318612 is a module that operates @ a frequency of 2.4GHz and uses Bluetooth v4.0 protocol.

  • Frequency: 2.4GHz
  • Protocol: Bluetooth v4.0
  • Data Rate: -
  • Memory Size: 256kB Flash, 8kB RAM
  • Receiving Current: 19.8mA
  • Transmitting Current: 20.6mA
  • Supply and Demand: Balanced
  • Application: RF/IF and RFID
