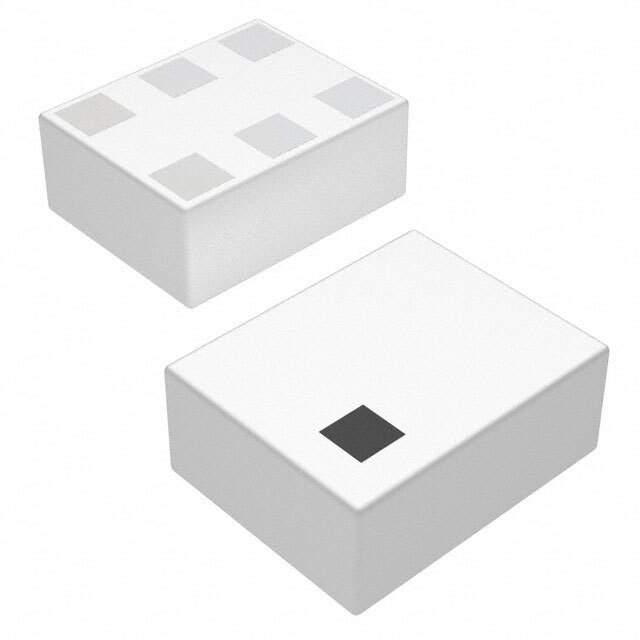

DPX255950DT-5120A1 Real Image
Same model may have multiple batches, images only for reference.

DPX255950DT-5120A1

Part No DPX255950DT-5120A1
Manufacturer TDK Corporation
Catalog RF Multiplexers
Description RF DIPLEXER 2.45/5.425GHZ 0805
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Estimated Pruduction Lead Time 11 Weeks
Features RF Diplexer 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz 0805 (2012 Metric), 6 PC Pad
Manufacturer TDK Corporation
Series DPX
Package Reel - TR
Mounting Surface Mount
Package 0805 (2012 Metric), 6 PC Pad
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number 445-174205-6, 445-174205-1, 445-174205-2
Quantity per package 2000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 869251-DPX255950DT-5120A1
Ultra Librarian 3D Model Ultra Librarian DPX255950DT-5120A1 CAD Model

Description

The TDK Corporation DPX255950DT-5120A1 is a surface mount RF diplexer with a frequency range of 2.4GHz to 2.5GHz and 4.9GHz to 5.95GHz.

  • Manufacturer: TDK Corporation
  • Product Name: DPX255950DT-5120A1
  • Mounting Type: Surface Mount
  • Type: RF Diplexer
  • Frequency Range: 2.4GHz to 2.5GHz and 4.9GHz to 5.95GHz
  • Series: DPX
  • Packaging: Reel
  • Quantity: 2000
  • Application: RF/IF and RFID
  • Estimated Production Lead Time: 11 Weeks
