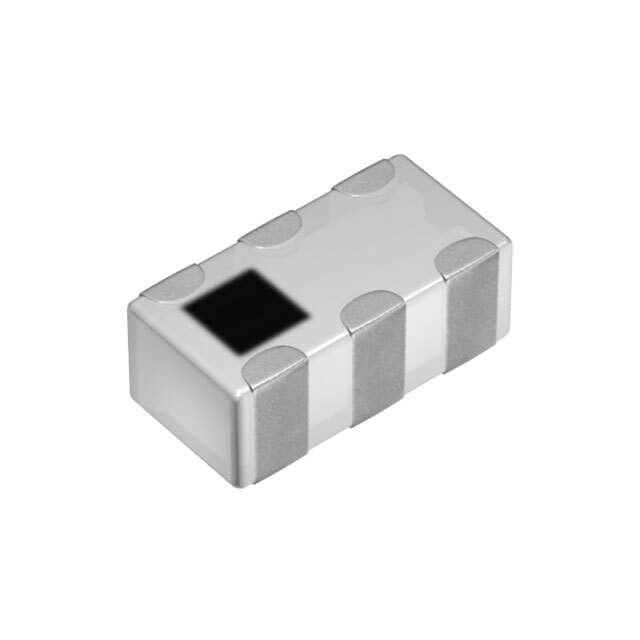

DPX165950DT-8145A1 Real Image
Same model may have multiple batches, images only for reference.

DPX165950DT-8145A1

Part No DPX165950DT-8145A1
Manufacturer TDK Corporation
Catalog RF Multiplexers
Description MULTILAYER DIPLEXER FOR 2400 - 2
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Estimated Pruduction Lead Time 11 Weeks
Features RF Diplexer 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz 0603 (1608 Metric), 6 PC Pad
Manufacturer TDK Corporation
Series DPX
Package Reel - TR
Mounting Surface Mount
Package 0603 (1608 Metric), 6 PC Pad
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.90.0100
Other Part Number 445-181644-2, 445-181644-1, 445-181644-6
Quantity per package 4000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 869247-DPX165950DT-8145A1
Ultra Librarian 3D Model Ultra Librarian DPX165950DT-8145A1 CAD Model

Description

The TDK Corporation DPX165950DT-8145A1 RF Diplexer is a high-performance device that is designed for various applications.

  • Manufacturer: TDK Corporation
  • Product Name: DPX165950DT-8145A1
  • Type: RF Diplexer
  • Frequency Range: 2.4GHz to 2.5GHz and 4.9GHz to 5.95GHz
  • Package: 0603 (1608 Metric), 6 PC Pad
  • Mounting Type: Surface Mount
  • Category: RF/IF and RFID
  • Popularity: Medium
  • Supply and Demand Status: Limited
