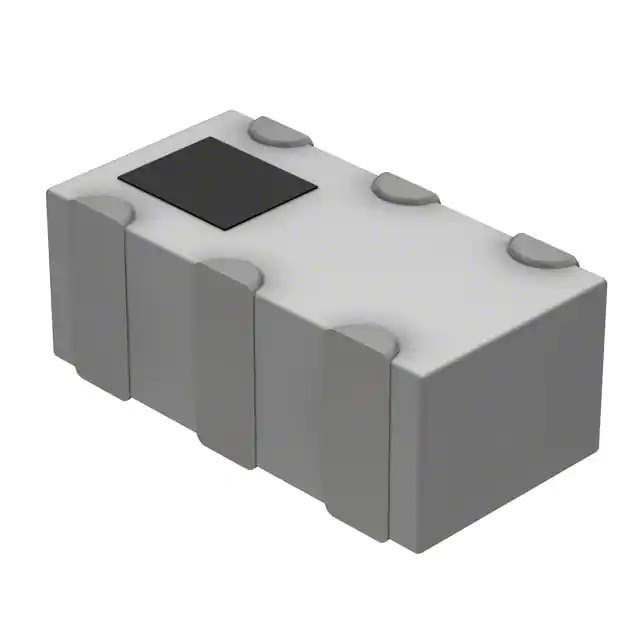

DPX165950DT-8144A1 Real Image
Same model may have multiple batches, images only for reference.

DPX165950DT-8144A1

Part No DPX165950DT-8144A1
Manufacturer TDK Corporation
Catalog RF Multiplexers
Description RF DIPLEXER 0603 6 PC PAD / RF Diplexer 0603 (1608 Metric), 6 PC Pad
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Multiplexers
Mfr TDK Corporation
Series DPX
Package Tape & Reel
Product Status Active
Type Diplexer
Mounting Type Surface Mount
Package / Case 0603 (1608 Metric), 6 PC Pad
Standard Package 4,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8543.70.9860
Win Source Part Number 585793-DPX165950DT-8144A1
Ultra Librarian 3D Model Ultra Librarian DPX165950DT-8144A1 CAD Model

Description

The DPX series of RF multiplexers from TDK Corporation is designed to enable the simultaneous use of multiple frequency bands in wireless communication systems.

  • Frequency Bands: 2.4GHz to 2.5GHz and 4.9GHz to 5.95GHz
  • Low Band Attenuation: 21.00dB to 36.00dB
  • High Band Attenuation: 10.00dB to 42.00dB
  • Mounting Type: Surface mountable
  • Package: 0603 (1608 Metric)
  • PC Pads: 6
  • Operating Temperature: -40°C to 105°C
  • Standard Package: 4,000 pcs
