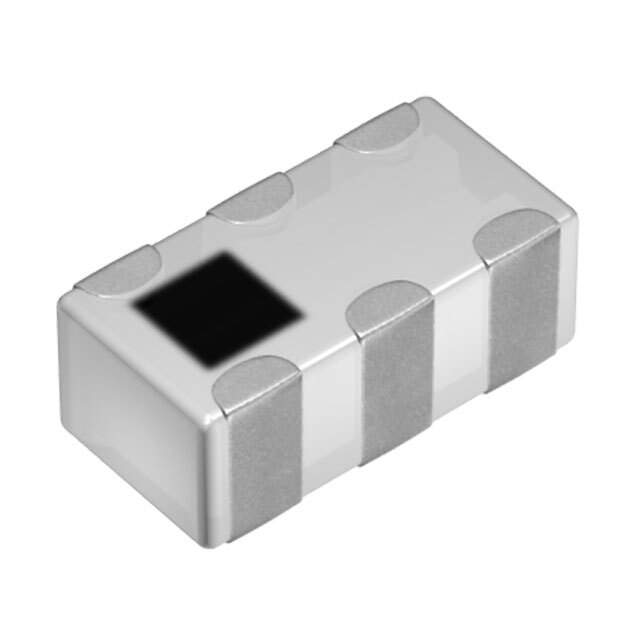

DPX165950DT-8060A1 Real Image
Same model may have multiple batches, images only for reference.

DPX165950DT-8060A1

Part No DPX165950DT-8060A1
Manufacturer TDK Corporation
Catalog RF Multiplexers
Description RF DIPLEXER 2.45/5.425GHZ 0603
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Estimated Pruduction Lead Time 11 Weeks
Features RF Diplexer 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz 0603 (1608 Metric), 6 PC Pad
Manufacturer TDK Corporation
Series DPX
Package Reel - TR
Mounting Surface Mount
Package 0603 (1608 Metric), 6 PC Pad
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number 445-174761-1, 445-174761-2, 445-174761-6
Quantity per package 4000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 869245-DPX165950DT-8060A1
Ultra Librarian 3D Model Ultra Librarian DPX165950DT-8060A1 CAD Model

Description

The TDK Corporation DPX165950DT-8060A1 is an RF diplexer that operates in the 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz frequency range.

  • Manufacturer: TDK Corporation
  • Product Name: DPX165950DT-8060A1
  • Type: RF Diplexer
  • Frequency Range: 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz
  • PC Pads: 6
  • Package: 0603 (1608 Metric)
  • Mounting: Surface-Mount
  • Packaging: Reel-TR
  • Supply and Demand Status: Limited
  • Quantity per Package: 4000
  • MSL Level: Unlimited
  • Estimated Production Lead Time: 11 weeks
  • ECCN: EAR99
