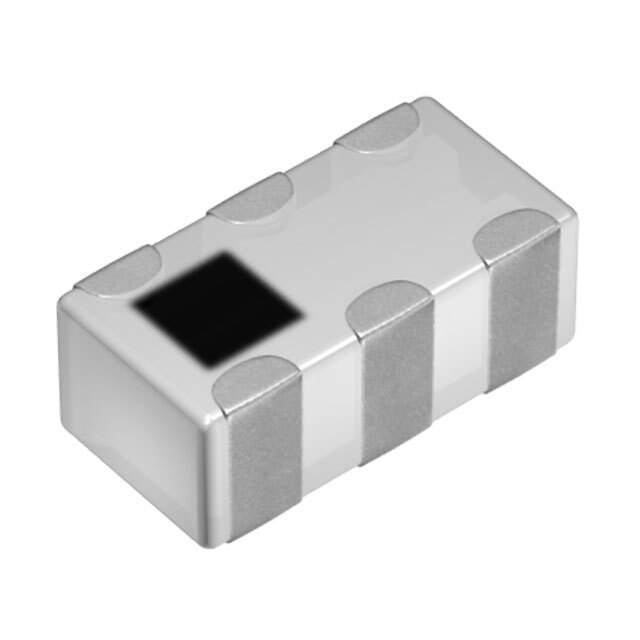

DPX165950DT-8045A1 Real Image
Same model may have multiple batches, images only for reference.

DPX165950DT-8045A1

Part No DPX165950DT-8045A1
Manufacturer TDK Corporation
Catalog RF Multiplexers
Description RF DIPLEXER 2.45/5.425GHZ 0603 / RF Diplexer 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz 0603 (1608 Metric), 6 PC Pad
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Multiplexers
Mfr TDK Corporation
Series DPX
Package Tape & Reel
Type Diplexer
Frequency Bands (Low / High) 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz
Low Band Attenuation (min / max dB) 28.00dB / 37.00dB
High Band Attenuation (min / max dB) 11.00dB / 36.00dB
Mounting SMD (SMT)
Package / Case 0603 (1608 Metric), 6 PC Pad
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names 445-174762-2,445-174762-1,445-174762-6
Standard Package 4,000
Win Source Part Number 967969-DPX165950DT-8045A1
Ultra Librarian 3D Model Ultra Librarian DPX165950DT-8045A1 CAD Model

Description

TDK Corporation's DPX165950DT-8045A1 is a diplexer that is used in various RF/IF and RFID applications.

  • Frequency Range: 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz
  • Low Band Attenuation: 28.00dB / 37.00dB
  • High Band Attenuation: 11.00dB / 36.00dB
  • Package: 0603 (1608 Metric), 6 PC Pad
  • Mounting Type: Surface Mount
  • Packaging: Tape & Reel
  • Standard Package: 4,000
  • RoHS Compliant: Yes
  • Popularity: High
  • Supply and Demand Status: Balance
  • ECCN: EAR99 rated
