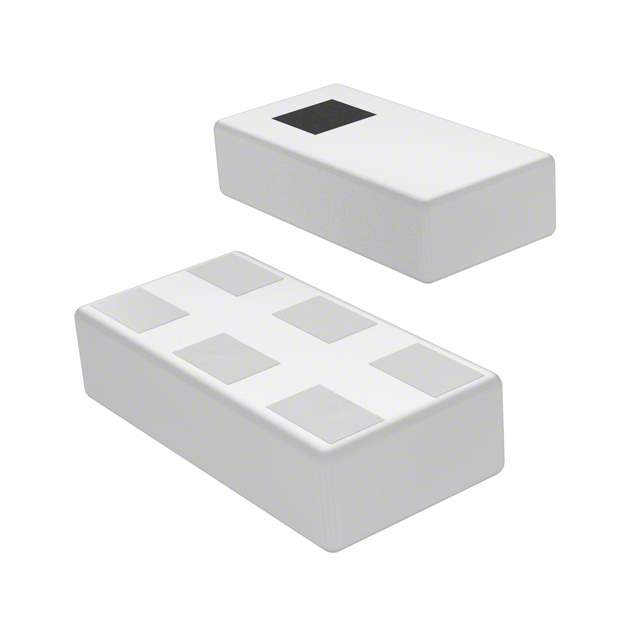

DPX165850DT-8086A1 Real Image
Same model may have multiple batches, images only for reference.

DPX165850DT-8086A1

Part No DPX165850DT-8086A1
Manufacturer TDK Corporation
Catalog RF Multiplexers
Description MULTILAYER DIPLEXER FOR 698 - 26 / RF Diplexer 698MHz ~ 2.69GHz / 3.4GHz ~ 5.85GHz 0603 (1608 Metric), 6 PC Pad
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Multiplexers
Mfr TDK Corporation
Series DPX
Package Tape & Reel
Type Diplexer
Frequency Bands (Low / High) 698MHz ~ 2.69GHz / 3.4GHz ~ 5.85GHz
Low Band Attenuation (min / max dB) 20.00dB / 23.80dB
High Band Attenuation (min / max dB) 18.00dB / 23.40dB
Return Loss (Low Band / High Band) 9.54dB / 9.54dB
Mounting SMD (SMT)
Package / Case 0603 (1608 Metric), 6 PC Pad
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names 445-181643-2,445-181643-6,445-181643-1
Standard Package 4,000
Win Source Part Number 988915-DPX165850DT-8086A1
Ultra Librarian 3D Model Ultra Librarian DPX165850DT-8086A1 CAD Model

Description

The TDK Corporation DPX165850DT-8086A1 is a Diplexer that is designed to provide excellent performance.

  • Manufacturer: TDK Corporation
  • Package: Tape & Reel
  • Standard Package: 4,000
  • Mounting Type: Surface Mount
  • Package/Case: 0603 (1608 Metric), 6 PC Pad
  • Frequency Bands: 698MHz ~ 2.69GHz / 3.4GHz ~ 5.85GHz
  • Low Band Attenuation: 20.00dB / 23.80dB
  • High Band Attenuation: 18.00dB / 23.40dB
  • Return Loss: 9.54dB / 9.54dB
  • ECCN: EAR99
  • HTSUS: 8504.50.8000
