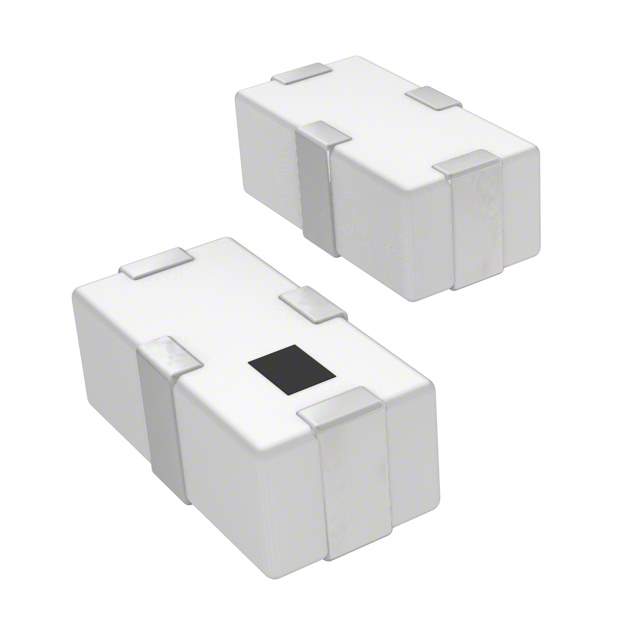

DPX162500DT-8014A1 Real Image
Same model may have multiple batches, images only for reference.

DPX162500DT-8014A1

Part No DPX162500DT-8014A1
Manufacturer TDK Corporation
Catalog RF Multiplexers
Description RF DIPLEXER 1.575/2.45GHZ 0603
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Estimated Pruduction Lead Time 11 Weeks
Features RF Diplexer 1.565GHz ~ 1.585GHz / 2.4GHz ~ 2.5GHz 0603 (1608 Metric), 4 PC Pad
Manufacturer TDK Corporation
Series DPX
Package Reel - TR
Mounting Surface Mount
Package 0603 (1608 Metric), 4 PC Pad
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number 445-9314-2, 445-9314-1, DPX162500DT8014A1, 445-9314-6
Quantity per package 4000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 869241-DPX162500DT-8014A1
Ultra Librarian 3D Model Ultra Librarian DPX162500DT-8014A1 CAD Model

Description

The TDK Corporation DPX162500DT-8014A1 is an RF diplexer with a frequency range of 1.565GHz to 1.585GHz and 2.4GHz to 2.5GHz.

  • Manufacturer: TDK Corporation
  • Product Name: DPX162500DT-8014A1
  • Frequency Range: 1.565GHz to 1.585GHz and 2.4GHz to 2.5GHz
  • Mounting Type: Surface-Mount Device
  • Package Size: 0603 (1608 Metric), 4 PC Pad
  • Series: DPX
  • Categories: RF/IF and RFID
  • ECCN: EAR99
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Package Quantity: 4000
  • MSL Level: 1 (Unlimited)
  • Production Lead Time: 11 weeks (Estimated)
  • HTSUS: 8504.50.8000
  • Other Part Numbers: 445-9314-2, 445-9314-1, and 445-9314-6
