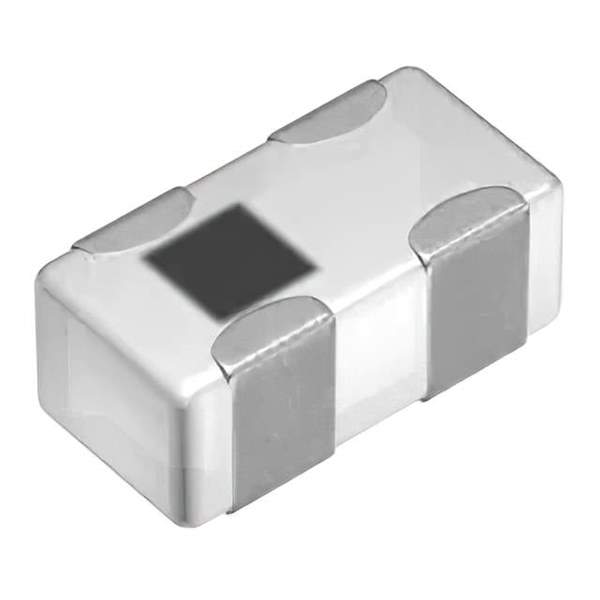

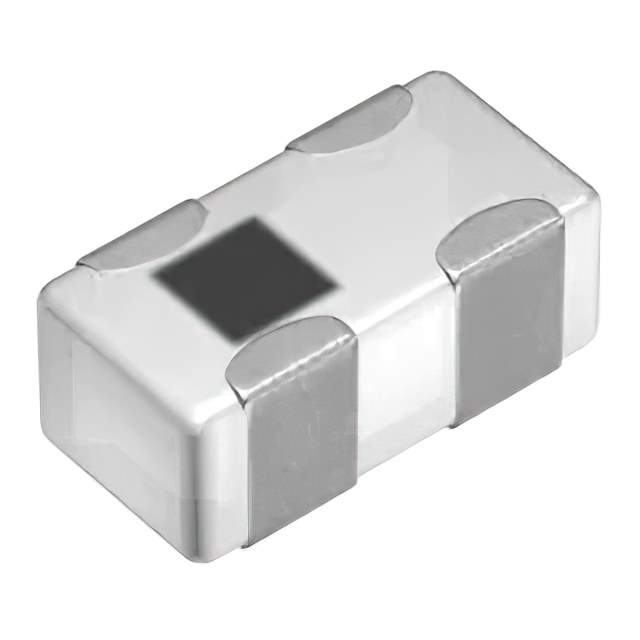

DPX105950DT-6112A2 Real Image
Same model may have multiple batches, images only for reference.

DPX105950DT-6112A2

Part No DPX105950DT-6112A2
Manufacturer TDK Corporation
Catalog RF Multiplexers
Description MULTILAYER DIPLEXER FOR 2400 - 2 / RF Diplexer 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz 0402 (1005 Metric), 4 PC Pad
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Multiplexers
Mfr TDK Corporation
Series DPX
Package Tape & Reel
Type Diplexer
Frequency Bands (Low / High) 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz
Low Band Attenuation (min / max dB) 23.00dB / 29.00dB
High Band Attenuation (min / max dB) 32.00dB / 41.00dB
Return Loss (Low Band / High Band) 10.0dB / 10.0dB
Mounting SMD (SMT)
Package / Case 0402 (1005 Metric), 4 PC Pad
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names 445-181437-6,445-181437-1,445-181437-2
Standard Package 10,000
Win Source Part Number 968875-DPX105950DT-6112A2
Ultra Librarian 3D Model Ultra Librarian DPX105950DT-6112A2 CAD Model

Description

The TDK Corporation DPX105950DT-6112A2 is a diplexer RF multiplexer that operates in two frequency bands, 2.4GHz ~ 2.5GHz and 4.9GHz ~ 5.95GHz.

  • Frequency Bands: 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.95GHz
  • Low Band Attenuation (min / max dB): 23.00dB / 29.00dB
  • High Band Attenuation (min / max dB): 32.00dB / 41.00dB
  • Return Loss (low band / high band): 10.0dB / 10.0dB
  • Mounting Type: Surface Mountable
  • Packaging: Tape and Reel
  • Category: RF/IF and RFID>RF Multiplexers
  • Series: DPX
  • Package/Case: 0402 (1005 Metric), 4 PC Pad
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8504.50.8000
  • Other Names: 445-181437-6, 445-181437-1, 445-181437-2
