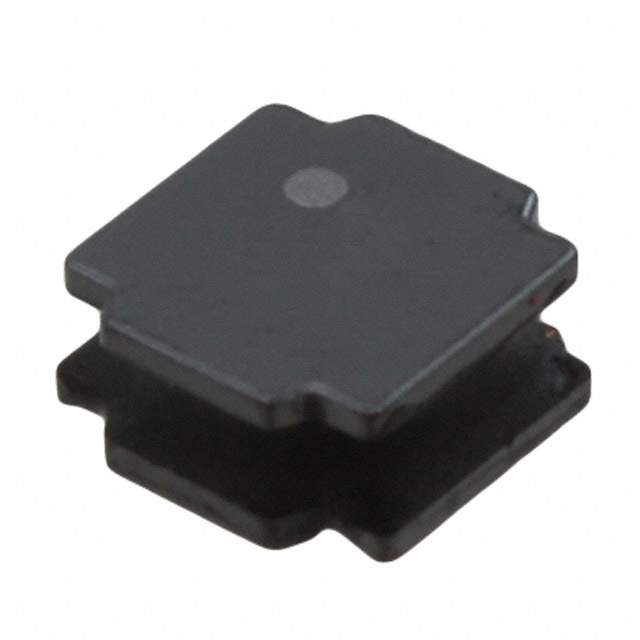

NR8040T101M Real Image
Same model may have multiple batches, images only for reference.

NR8040T101M

Part No NR8040T101M
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 100UH 1A 377 MOHM SMD
Datasheet
NR8040T101M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Taiyo Yuden
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 100μH
Tolerance ±20%
Current Rating 1A
Current - Saturation 1A
DC Resistance (DCR) 377 mOhm Max
Frequency - Self Resonant 6MHz
Temperature Range - Operating -25°C to 120°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.157" (4.00mm)
Win Source Part Number 1083407-NR8040T101M
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian NR8040T101M CAD Model

Description

The Taiyo Yuden NR8040T101M is a wirewound inductor designed for use in various applications.

  • Inductance: 100μH
  • Current Rating: 1A
  • Mounting: surface mountable
  • Packaging: on a reel
  • Height: 0.157 inches
  • Tolerance: ±20%
  • Core Material: ferrite
  • DC Resistance (DCR): 377 mOhm max
  • Frequency Self-Resonant: 6MHz
  • Frequency Test: 100kHz
  • Package: 1k pcs
