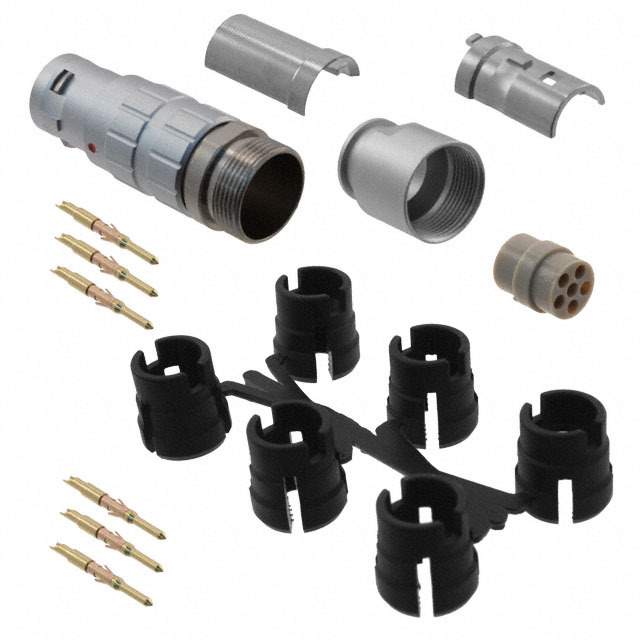

JBXFD2G06MSSDSMR Real Image
Same model may have multiple batches, images only for reference.

JBXFD2G06MSSDSMR

Part No JBXFD2G06MSSDSMR
Manufacturer Souriau-Sunbank by Eaton
Catalog Circular Connectors
Description CONN PLUG MALE 6P GOLD SLDR CUP / 6 Position Circular Connector Plug, Male Pins Solder Cup
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors
Mfr Souriau-Sunbank by Eaton
Series JBX
Package Bulk
Connector Type Plug, Male Pins
Number of Positions 6
Shell Size - Insert 2
Mounting Type Free Hanging (In-Line)
Termination Solder Cup
Fastening Type Push-Pull
Orientation G
Primary Material Metal
Shell Material Brass
Shell Finish Chrome over Nickel
Contact Finish - Mating Gold
Color Silver
Ingress Protection IP40
Material Flammability Rating UL94 V-0
Features Backshell, Boot Adapter
Shielding Shielded
Current Rating (Amps) 12A
Voltage Rating 900V
Temperature Range - Operating -40°C ~ 125°C
Backshell Material, Plating Brass, Chrome over Nickel
Contact Finish Thickness - Mating 19.7µin (0.50µm)
Insert Material Polyetheretherketone (PEEK)
Applications Industrial, Instrumentation, Medical, Telecommunications
Base Product Number JBXFD2G
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4020
Other Names SOU1568
Standard Package 25
Win Source Part Number 997968-JBXFD2G06MSSDSMR
Ultra Librarian 3D Model Ultra Librarian JBXFD2G06MSSDSMR CAD Model

Description

The Souriau-Sunbank by Eaton 997968-JBXFD2G06MSSDSMR is a 6-position circular connector suitable for industrial, instrumentation, medical, and telecommunications applications.

  • Manufacturer: Souriau-Sunbank by Eaton
  • Product Name: 997968-JBXFD2G06MSSDSMR
  • Positions: 6
  • Connector Type: Circular Connector
  • Applications: Industrial, Instrumentation, Medical, Telecommunications
  • Connector Type: Plug with Male Pins
  • Termination: Solder Cup
  • Features: Backshell and Boot Adapter
  • Shielding: Shielded
  • Ingress Protection: IP40
  • Shell Material: Brass
  • Shell Plating: Chrome over Nickel
  • Voltage Rating: 900V
  • Operating Temperature: -40°C to 125°C
  • Contact Finish: Gold
  • Contact Finish Thickness: 19.7µin (0.50µm)
  • Mounting Type: Free Hanging (In-Line)
  • Shell Size Insert: 2
  • Insert Material: Polyetheretherketone (PEEK)
