Same model may have multiple batches, images only for reference.

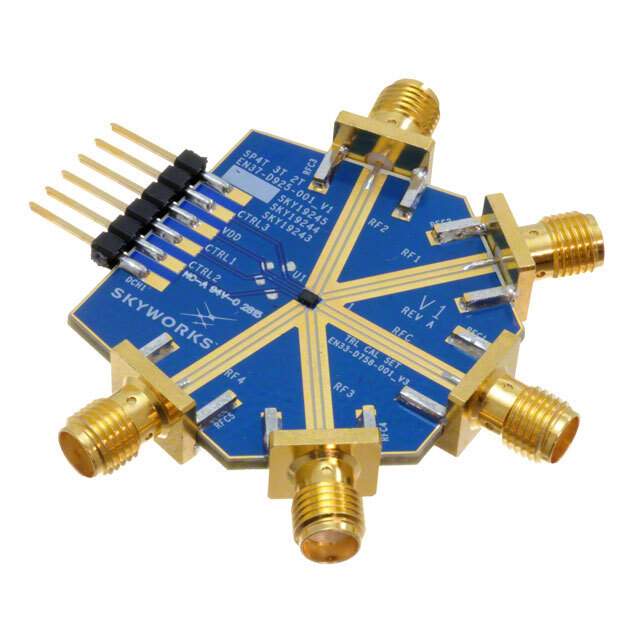

SKY19245-686LF-EVB Real Image
Same model may have multiple batches, images only for reference.

SKY19245-686LF-EVB

Part No SKY19245-686LF-EVB
Manufacturer Skyworks Solutions Inc.
Catalog RF Evaluation and Development Kits, Boards
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Development Boards, Kits, Programmers>RF Evaluation and Development Kits, Boards
Mfr Skyworks Solutions Inc.
Package Box
Type Switch, SP4T
Frequency 100MHz ~ 2.7GHz
For Use With/Related Products SKY19245-686LF
Supplied Contents Board(s)
Base Product Number SKY19245
Other Names 863-2062
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8543.70.9860
Win Source Part Number 1283380-SKY19245-686LF-EVB
Ultra Librarian 3D Model Ultra Librarian SKY19245-686LF-EVB CAD Model

Description

The SKY19245-686LF-EVB is a development board for RF evaluation and development kits, boards.

  • Product Type: Switch, SP4T type
  • Package: Box
  • Frequency Range: 100MHz to 2.7GHz
  • Supplied With: Board(s)
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8543.70.9860
  • Manufacturer: Skyworks Solutions Inc.
