Same model may have multiple batches, images only for reference.

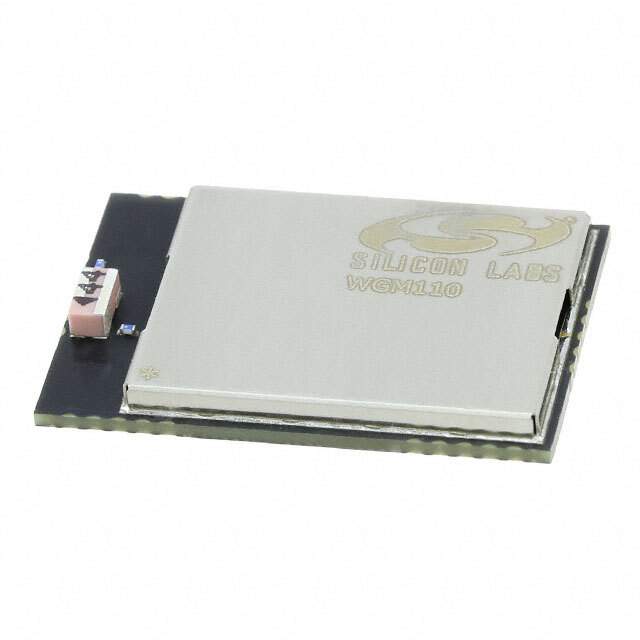

WGM110A1MV2 Real Image
Same model may have multiple batches, images only for reference.

WGM110A1MV2

Part No WGM110A1MV2
Manufacturer Silicon Labs
Catalog RF Transceiver Modules
Description RF TXRX MODULE WIFI CHIP SMD / WiFi 802.11b/g/n Transceiver Module 2.4GHz Integrated, Chip Surface Mount
Datasheet
WGM110A1MV2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr Silicon Labs
Series Wizard Gecko
Package Strip
Product Status Obsolete
RF Family/Standard WiFi
Protocol 802.11b/g/n
Frequency 2.4GHz
Data Rate 72.2Mbps
Power - Output 16dBm
Sensitivity -98dBm
Serial Interfaces I2C, SPI, UART, USB
Antenna Type Integrated, Chip
Memory Size 1MB Flash, 128kB RAM
Voltage - Supply 2.7V ~ 4.8V
Current - Receiving 81mA
Current - Transmitting 261mA
Mounting Type Surface Mount
Temperature Range - Operating -40°C ~ 85°C
Package / Case Module
Base Product Number WGM110
Standard Package 100
MSL Level 3 (168 Hours)
ECCN 5A992C
HTSUS 8517.62.0090
Win Source Part Number 1338254-WGM110A1MV2
Ultra Librarian 3D Model Ultra Librarian WGM110A1MV2 CAD Model

Description

The WGM110A1MV2 is a Wizard Gecko RF Transceiver Module and Modem.

  • Type: RF Transceiver Module and Modem
  • Frequency Range: 2.4GHz
  • Protocol: 802.11b/g/n
  • Memory Size: 1MB flash and 128kB RAM
  • Antenna Type: Integrated Chip
  • Power Output: 16dBm
  • Sensitivity: -98dBm
  • Serial Interfaces: I2C, SPI, UART, USB
  • Receiving Current Consumption: 81mA
  • Transmitting Current Consumption: 261mA
  • Voltage Supply: 2.7V to 4.8V
  • Operating Temperature: -40°C to 85°C
  • Mounting Type: Surface Mount
  • Package: Module
