Same model may have multiple batches, images only for reference.

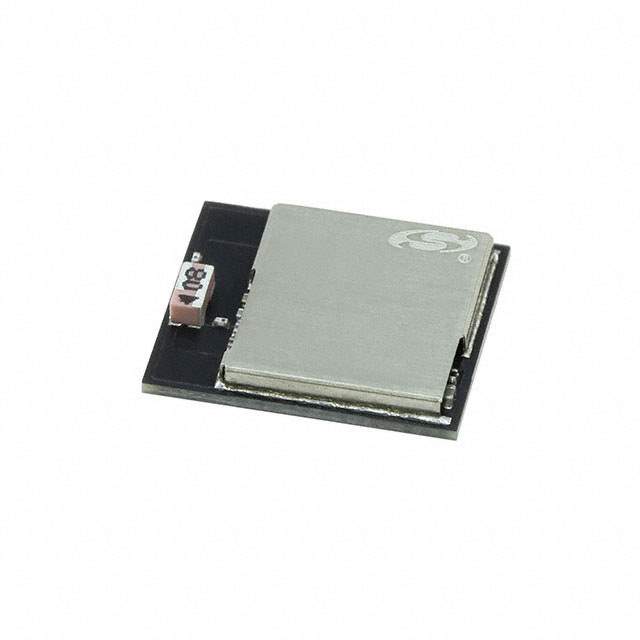

MGM111E256V2 Real Image
Same model may have multiple batches, images only for reference.

MGM111E256V2

Part No MGM111E256V2
Manufacturer Silicon Labs
Catalog RF Transceiver Modules
Description RX TXRX MOD 802.15.4 CHIP + U.FL  /  802.15.4 Zigbee® Transceiver Module 2.4GHz Integrated, Chip + U.FL Surface Mount
Datasheet
MGM111E256V2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Transceiver Modules and Modems
Mfr Silicon Labs
Series Mighty Gecko
Package Strip
Product Status Not For New Designs
RF Family/Standard 802.15.4
Protocol Zigbee®
Modulation DSSS, O-QPSK
Frequency 2.4GHz
Power - Output 10dBm
Sensitivity -99dBm
Serial Interfaces I2S, SPI, UART
Antenna Type Integrated, Chip + U.FL
Utilized IC / Part EFR32
Memory Size 256kB Flash, 32kB RAM
Voltage - Supply 1.85V ~ 3.8V
Current - Receiving 9.8mA
Current - Transmitting 8.2mA
Mounting SMD (SMT)
Temperature Range - Operating -40°C ~ 85°C
Package / Case Module
Base Product Number MGM111
Other Names 336-4116
Standard Package 100
MSL Level 3 (168 Hours)
ECCN 5A992C
HTSUS 8542.31.0001
Win Source Part Number 1235675-MGM111E256V2
Ultra Librarian 3D Model Ultra Librarian MGM111E256V2 CAD Model

Description

The MGM111E256V2 is an RF transceiver module from Silicon Labs' Mighty Gecko series. It operates at a frequency of 2.4GHz and uses the Zigbee protocol.

  • Memory Size: 256kB Flash and 32kB RAM
  • Antenna Type: Integrated Chip and U.FL
  • Output Power: 10dBm
  • Sensitivity: -99dBm
  • Current Consumption (Receiving): 9.8mA
  • Utilized IC/Part: EFR32
  • RF Family/Standard: 802.15.4
  • Modulation: DSSS and O-QPSK
  • Serial Interfaces: I2S, SPI, and UART
  • Supply Voltage: 1.85V to 3.8V
  • Transmitting Current: 8.2mA
  • Package: Module
  • Temperature Range: -40°C to 85°C
  • Recommendation: Not recommended for new designs
