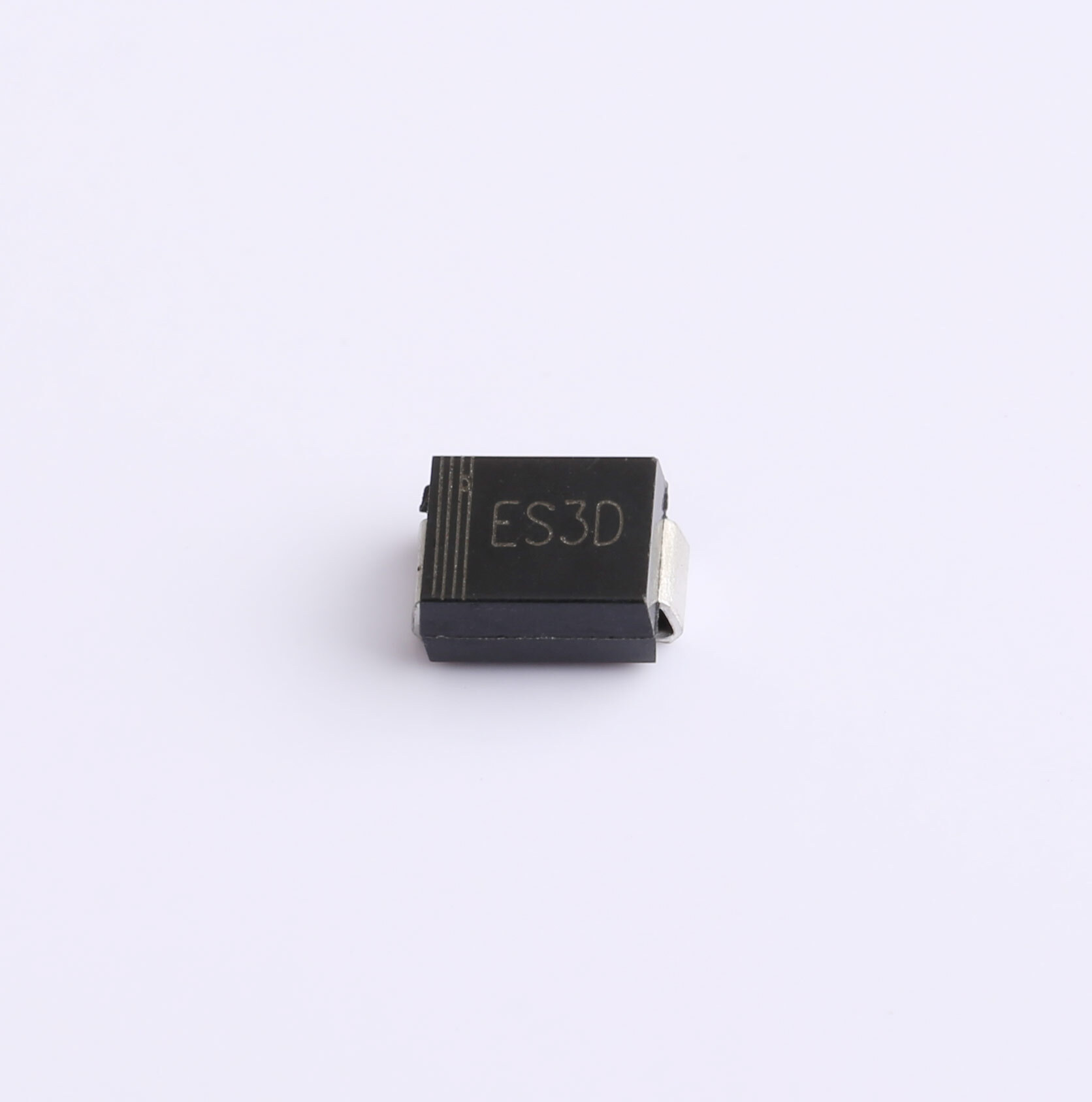

Same model may have multiple batches, images only for reference.
ES3DB ShenZhen SlkorMicro Semicon Co. Ltd – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

ES3DB

Part No ES3DB
Manufacturer ShenZhen SlkorMicro Semicon Co. Ltd
Catalog Diodes, Rectifiers - Single
Description Independent Type 3A 200V 950mV@3A SMB
Datasheet
ES3DB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1329790-ES3DB
Package Tape & Reel (TR)
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 200V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 1V @ 3A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 35ns
Current - Reverse Leakage @ Vr 5µA @ 200V
Grade -
Mounting Type Surface Mount
Package / Case DO-214AA, SMB
Supplier Device Package DO-214AA (SMB)
Operating Temperature - Junction -55°C ~ 150°C
Package Tape & Reel (TR);Cut Tape (CT)
Current - Reverse Leakage @ Vr 10µA @ 200V
Capacitance @ Vr, F 46pF @ 4V, 1MHz
Package Bag
Voltage - Forward (Vf) (Max) @ If 920 mV @ 3 A
Capacitance @ Vr, F 45pF @ 4V, 1MHz
Ultra Librarian 3D Model Ultra Librarian ES3DB CAD Model
