Same model may have multiple batches, images only for reference.

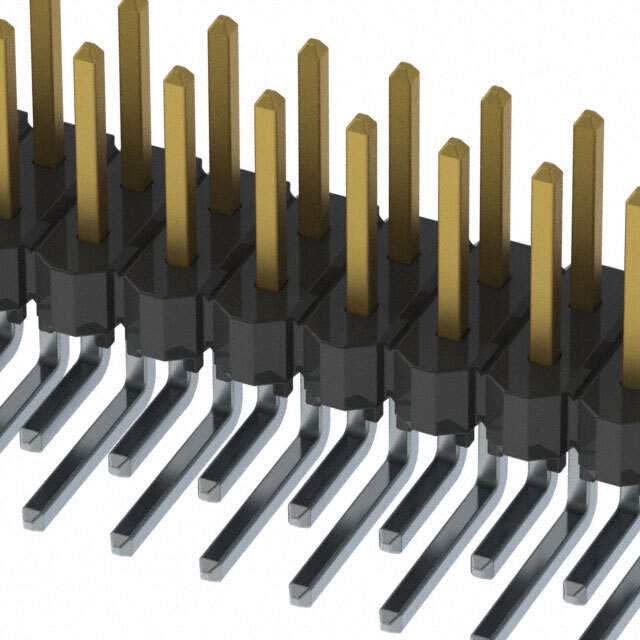

HTSW-117-08-L-D-RA Real Image
Same model may have multiple batches, images only for reference.

HTSW-117-08-L-D-RA

Part No HTSW-117-08-L-D-RA
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER R/A 34POS 2.54MM / Connector Header Through Hole, Right Angle 34 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series HTSW
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 34
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.230" (5.84mm)
Contact Length - Post 0.090" (2.29mm)
Insulation Height 0.240" (6.10mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) Varies by Wire Gauge
Base Product Number HTSW-117
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 1
Win Source Part Number 1172867-HTSW-117-08-L-D-RA
Ultra Librarian 3D Model Ultra Librarian HTSW-117-08-L-D-RA CAD Model

Description

The HTSW series male pin rectangular connector header from Samtec Inc. is designed for use in board-to-board or cable applications.

  • Pitch-Mating: 0.100" (2.54mm)
  • Row Spacing-Mating: 0.100" (2.54mm)
  • Unshrouded: Yes
  • Mounting Type: Through-Hole, Right Angle
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Insulation Color: Natural
  • Contact Material: Phosphor Bronze
  • Contact Finish-Mating: Gold with a thickness of 10.0µin (0.25µm)
  • Contact Finish-Post: Tin
  • Contact Shape: Square
  • Contact Length-Mating: 0.230" (5.84mm)
  • Contact Length-Post: 0.090" (2.29mm)
  • Insulation Height: 0.240" (6.10mm)
  • Insulation Material Flammability Rating: UL94 V-0
  • Temperature Range: -55°C to 125°C
  • Packaging: Bulk
