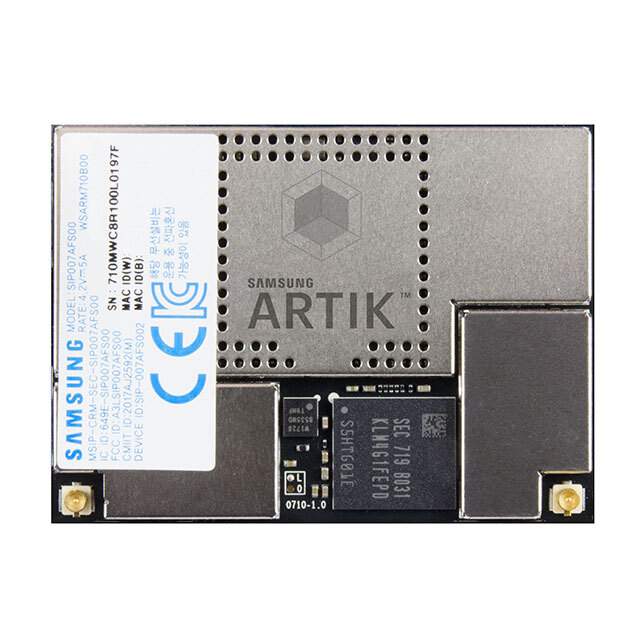

Same model may have multiple batches, images only for reference.

SIP-007AFS002

Name: SIP-007AFS002
Brand: Samsung
SKU: 1340271
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	SIP-007AFS002
Manufacturer	Samsung
Catalog	RF Transceiver Modules
Description	RF TXRX MOD WIFI CASTELLTION SMD / Bluetooth, WiFi 802.11a/b/g/n/ac, Bluetooth v4.0 Transceiver Module 2.4GHz Antenna Not Included, Castellation Surface Mount
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	RF and Wireless - RF Transceiver Modules and Modems
Mfr	Samsung Semiconductor, Inc.
Series	ARTIK
Package	Tray
Product Status	Obsolete
RF Family/Standard	Bluetooth, WiFi
Protocol	802.11a/b/g/n/ac, Bluetooth v4.0
Frequency	2.4GHz
Data Rate	54Mbps
Power - Output	16dBm
Sensitivity	-92dBm
Serial Interfaces	I²C, I²S, JTAG, SPI, UART, USB
Antenna Type	Antenna Not Included, Castellation
Memory Size	4GB Flash, 1GB DRAM
Voltage - Supply	3.7V ~ 5V
Mounting Type	Surface Mount
Temperature Range - Operating	0°C ~ 70°C
Package / Case	Module
Standard Package	1
MSL Level	3 (168 Hours)
ECCN	5A992C
HTSUS	8471.50.0150
Win Source Part Number	1340271-SIP-007AFS002
Ultra Librarian 3D Model	Ultra Librarian SIP-007AFS002 CAD Model

Description

The Samsung Semiconductor ARTIK series is an RF transceiver module that operates at a frequency of 2.4GHz.

Frequency: 2.4GHz
Protocols: 802.11a/b/g/n/ac and Bluetooth v4.0
Data Rate: 54Mbps
Memory Size: 4GB Flash and 1GB DRAM
Antenna Type: Castellated
Output Power: 16dBm
Sensitivity: -92dBm
Serial Interfaces: I²C, I²S, JTAG, SPI, UART, and USB
Voltage Supply: 3.7V to 5V
Mounting Type: Surface Mountable
Package/Case: Tray
Temperature Range: 0°C to 70°C
Status: Obsolete
