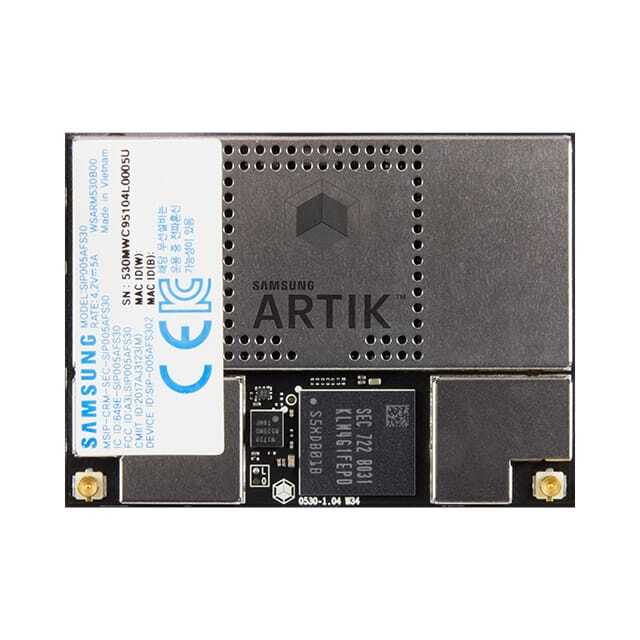

SIP-005AFS302
Same model may have multiple batches, images only for reference.

SIP-005AFS302

Part No SIP-005AFS302
Manufacturer Samsung
Catalog RF Transceiver Modules
Description RF TXRX MOD WIFI CASTELLTION SMD
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr Samsung
Series ARTIK
Package Tray
Product Status Obsolete
Programmable Not Verified
RF Family/Standard Bluetooth, WiFi
Protocol 802.11a/b/g/n, Bluetooth v4.2
Frequency 2.4GHz
Data Rate 54Mbps
Power - Output 15dBm
Sensitivity -97dBm
Serial Interfaces I²C, I²S, JTAG, SPI, UART, USB
Antenna Type Antenna Not Included, Castellation
Memory Size 4GB Flash, 512MB DRAM
Voltage - Supply 3.7V ~ 5V
Mounting Type Surface Mount
Temperature Range - Operating -25°C ~ 85°C
Package / Case Module
Standard Package 1 pcs
Moisture Sensitivity Level (MSL) Vendor Undefined
ECCN 5A992C
HTSUS 8471.50.0150
Win Source Part Number 933814-SIP-005AFS302
Ultra Librarian 3D Model Ultra Librarian SIP-005AFS302 CAD Model

Description

The SIP-005AFS302 is a RF transceiver module from Samsung's ARTIK series.

  • Frequency: 2.4GHz
  • Protocols: 802.11a/b/g/n and Bluetooth v4.2
  • Data Rate: 54Mbps
  • Memory: 4GB Flash and 512MB DRAM
  • Power Output: 15dBm
  • Sensitivity: -97dBm
  • Serial Interfaces: I²C, I²S, JTAG, SPI, and UART
  • Voltage Range: 3.7V to 5V
  • Temperature Range: -25°C to 85°C
  • Mounting: Surface Mount
