Same model may have multiple batches, images only for reference.

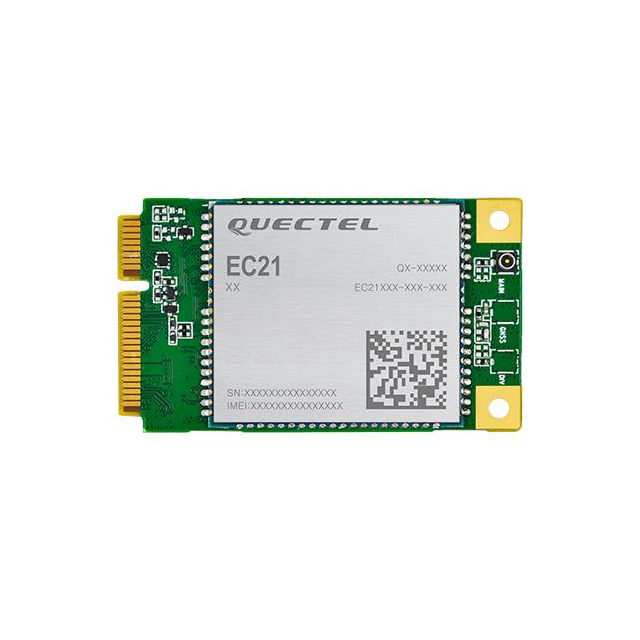

EC21VFA-MINIPCIE Real Image
Same model may have multiple batches, images only for reference.

EC21VFA-MINIPCIE

Part No EC21VFA-MINIPCIE
Manufacturer Quectel
Catalog RF Transceiver Modules
Description RF TXRX MOD CELL/NAV CARD EDGE / Cellular, Navigation BeiDou, Galileo, GLONASS, GPS, GNSS, LTE Transceiver Module Antenna Not Included Card Edge
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Transceiver Modules and Modems
Mfr Quectel
Package Tray
RF Family/Standard Cellular, Navigation
Protocol BeiDou, Galileo, GLONASS, GPS, GNSS, LTE
Data Rate 10Mbps
Serial Interfaces I²C, PCM, UART, USB
Antenna Type Antenna Not Included
Voltage - Supply 3V ~ 3.6V
Current - Receiving 30mA
Current - Transmitting 30mA
Mounting Type Card Edge
Temperature Range - Operating -35°C ~ 75°C
Package / Case Module
Base Product Number EC21
MSL Level Not Applicable
ECCN 5A992C 22
HTSUS 8517.62.0090
Other Names 2958-EC21VFA-MINIPCIE,2958-EC21VFA-MINIPCIEDKR-ND,2958-EC21VFA-MINIPCIECT,2958-EC21VFA-MINIPCIETR,2958-EC21VFA-MINIPCIEDKRINACTIVE,2958-EC21VFA-MINIPCIEDKR,2958-EC21VFA-MINIPCIECT-ND,2958-EC21VFA-MINIPCIETR-ND,2958-EC21VFA-MINIPCIECTINACTIVE
Standard Package 100
Win Source Part Number 1131815-EC21VFA-MINIPCIE
Ultra Librarian 3D Model Ultra Librarian EC21VFA-MINIPCIE CAD Model

Description

The Quectel 1131815-EC21VFA-MINIPCIE is an RF transceiver module and modem with a frequency of - and a data rate of 10Mbps. This product supports BeiDou, Galileo, GLONASS, GPS, GNSS, and LTE protocols.

  • Module Type: RF Transceiver Module & Modem
  • Frequency: -
  • Data Rate: 10Mbps
  • Protocols: BeiDou, Galileo, GLONASS, GPS, GNSS, LTE
  • Receiving Current: 30mA
  • Transmitting Current: 30mA
  • Voltage Rating: 3V ~ 3.6V
  • Mounting Type: Card Edge
  • Operating Temperature: -35°C to 75°C
  • Memory Size: None
  • Antenna Type: None
  • MSL Level: Not Applicable
  • ECCN: 5A992C 22
  • HTSUS Code: 8517.62.0090
