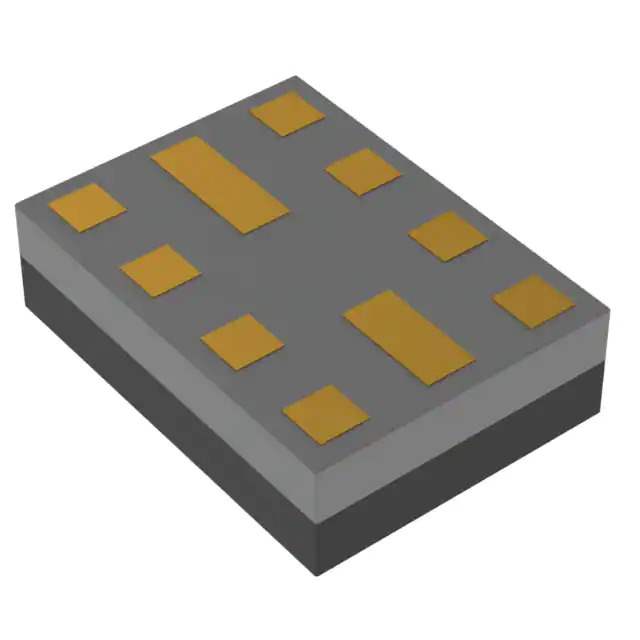

B39941B9509L310 Real Image
Same model may have multiple batches, images only for reference.

B39941B9509L310

Part No B39941B9509L310
Manufacturer Qualcomm
Catalog RF Multiplexers
Description RF DIPLEXER 881.5/942.5MHZ 10SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Multiplexers
Mfr Qualcomm
Series B9509
Package Bulk
Product Status Obsolete
Type Diplexer
Frequency Bands (Low / High) 869MHz ~ 894MHz / 925MHz ~ 960MHz
Low Band Attenuation (min / max dB) 24.00dB / 30.00dB
High Band Attenuation (min / max dB) 25.00dB / 28.00dB
Mounting Type Surface Mount
Package / Case 10-SMD, No Lead
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0080
Win Source Part Number 863074-B39941B9509L310
Ultra Librarian 3D Model Ultra Librarian B39941B9509L310 CAD Model

Description

The 863074-B39941B9509L310 is a diplexer designed for RF and wireless applications.

  • Frequency Bands: 869MHz to 894MHz and 925MHz to 960MHz
  • Low Band Attenuation: 24.00dB to 30.00dB
  • High Band Attenuation: 25.00dB to 28.00dB
  • Package: 10-SMD, no lead
  • Manufacturer: Qualcomm
  • Status: Obsolete
