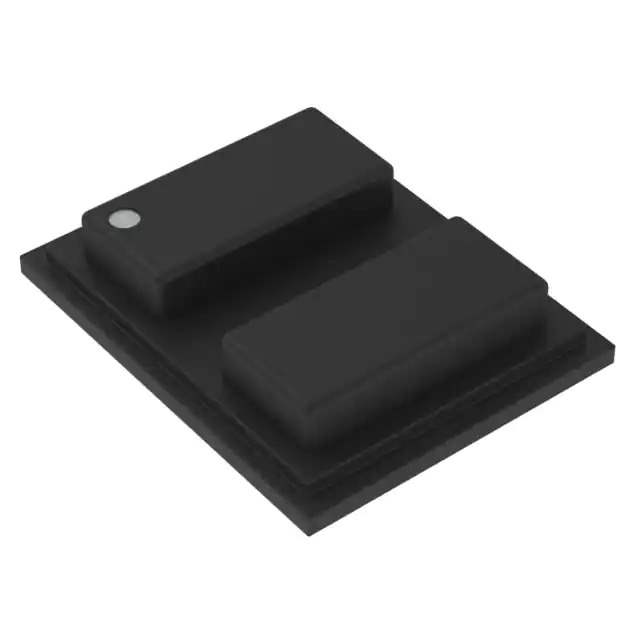

B39781B8034P810 Real Image
Same model may have multiple batches, images only for reference.

B39781B8034P810

Part No B39781B8034P810
Manufacturer Qualcomm
Catalog RF Multiplexers
Description RF DIPLEXER 9SMD NO LEAD / RF 746MHz ~ 756MHz / 777MHz ~ 787MHz 9-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Multiplexers
Mfr Qualcomm
Series B8034
Package Tape & Reel
Product Status Active
Frequency Bands (Low / High) 746MHz ~ 756MHz / 777MHz ~ 787MHz
Low Band Attenuation (min / max dB) 50.00dB / 58.00dB
High Band Attenuation (min / max dB) 50.00dB / 56.00dB
Mounting Type Surface Mount
Package / Case 9-SMD, No Lead
Standard Package 500 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0080
Win Source Part Number 863062-B39781B8034P810
Ultra Librarian 3D Model Ultra Librarian B39781B8034P810 CAD Model

Description

The 863062-B39781B8034P810 is an RF multiplexer from Qualcomm.

  • Category: RF and Wireless - RF Multiplexers
  • Series: B8034
  • Packaging: Tape & Reel
  • Standard Package: 500 pcs
  • Frequency Bands (Low / High): 746MHz ~ 756MHz and 777MHz ~ 787MHz
  • Low Band Attenuation: 50.00dB to 58.00dB
  • High Band Attenuation: 50.00dB to 56.00dB
  • Mounting Type: Surface Mount
  • Package/Case: 9-SMD, No Lead
  • ECCN: EAR99
  • REACH Status: Unaffected
  • Product Status: Active
