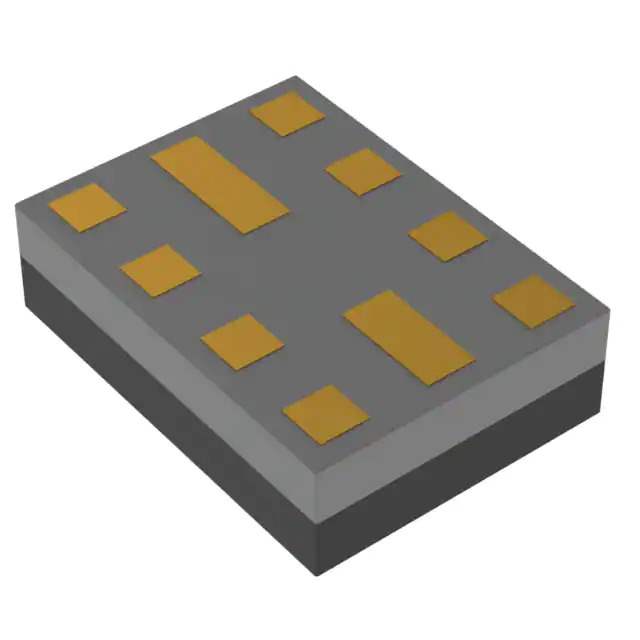

B39202B9508L310 Real Image
Same model may have multiple batches, images only for reference.

B39202B9508L310

Part No B39202B9508L310
Manufacturer Qualcomm
Catalog RF Multiplexers
Description RF DIPLEXER 1.8425/1.96GHZ 10SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Multiplexers
Mfr Qualcomm
Series B9508
Package Bulk
Product Status Obsolete
Type Diplexer
Frequency Bands (Low / High) 1.805GHz ~ 1.88GHz / 1.93GHz ~ 1.99GHz
Low Band Attenuation (min / max dB) 20.00dB / 24.00dB
High Band Attenuation (min / max dB) 7.00dB / 20.00dB
Mounting Type Surface Mount
Package / Case 10-SMD, No Lead
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0080
Win Source Part Number 863339-B39202B9508L310
Ultra Librarian 3D Model Ultra Librarian B39202B9508L310 CAD Model

Description

The 863339-B39202B9508L310 is an RF multiplexer diplexer designed for specific frequency bands. It operates in the frequency range of 1.805GHz to 1.88GHz for the low band and 1.93GHz to 1.99GHz for the high band.

  • Frequency Low Band: 1.805GHz ~ 1.88GHz
  • Frequency High Band: 1.93GHz ~ 1.99GHz
  • Mounting Type: Surface Mount
  • Package: 10-SMD, No Lead
  • Attenuation Low Band: 20.00dB ~ 24.00dB
  • Attenuation High Band: 7.00dB ~ 20.00dB
  • Manufacturer: Qualcomm
  • Status: Obsolete
  • ECCN: EAR99
  • REACH: unaffected
  • HTSUS: 8541.60.0080
  • MSL: 1 (Unlimited)
