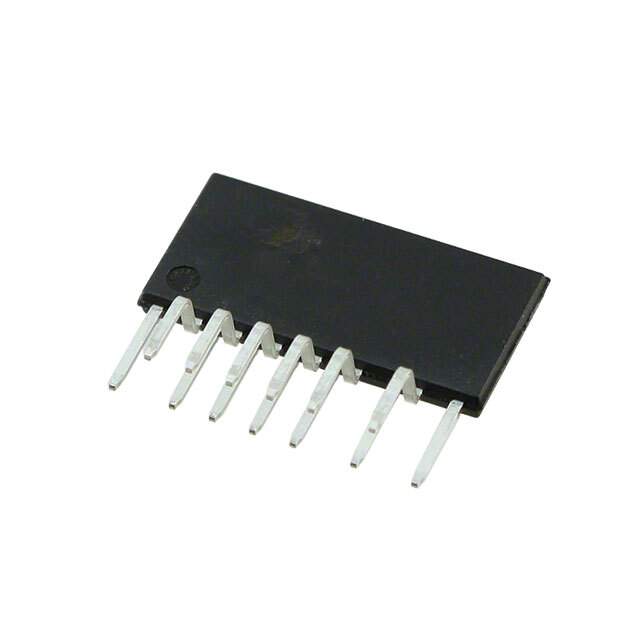

LCS705HG Real Image
Same model may have multiple batches, images only for reference.

LCS705HG

Part No LCS705HG
Manufacturer Power Integrations
Catalog PMIC - Full, Half - Bridge Drivers
Description Integrated LLC Controller, High-Voltage Power MOSFETs and Drivers
Datasheet
LCS705HG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Power Integrations
Series HiperLCS
Packaging Tube
Output Configuration Half Bridge
Applications General
Interface On/Off
Load Type Inductive
Technology Power MOSFET
Rds On (Typ) 400 mOhm
Current - Peak Output 19.3A
Operating Supply Voltage 11.4 V ~ 15 V
Voltage - Load 11.4 V ~ 15 V
Operating Temperature Range -40°C ~ 150°C (TJ)
Features Auto Restart, Slew Rate Controlled
Fault Protection Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO
Mounting Style Through Hole
Package 16-SIP, 13 Leads, Exposed Pad, Formed Leads
Manufacturer Package 16-ESIP
Win Source Part Number 1195736-LCS705HG
Manufacturer Homepage www.powerint.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LCS705HG CAD Model

Description

The LCS705HG is a HiperLCS series IC from Power Integrations.

  • Application: general applications
  • Operating Supply Voltage: 11.4V to 15V
  • Package: 16-SIP, 13 leads, exposed pad, formed leads package
  • Mounting Type: through hole
  • Operating Temperature Range: -40°C to 150°C (TJ)
  • Features: auto restart and slew rate controlled
  • Fault Protection: current limiting, over-temperature, over-voltage, short circuit, and UVLO
  • Output Configuration: half bridge
  • Voltage-Load Range: 11.4V to 15V
  • Rds On (Typ): 400 mOhm
  • Load Type: inductive
  • Peak Output Current: 19.3A
  • Category: integrated circuits (ICs)
  • Popularity: medium
  • Alternative Parts (cross-reference): LTC2955ITS8-1#TRMPBF, LTC2950CTS8-2#TR, and LTC2950CTS8-2
