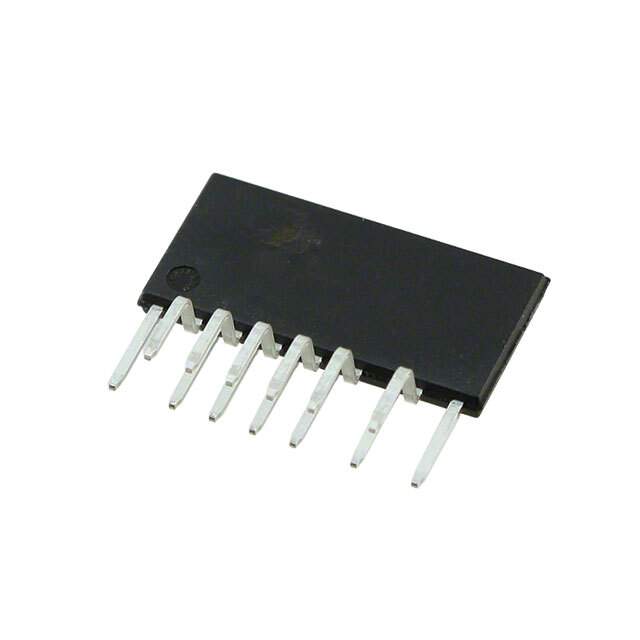

LCS703HG

Part No LCS703HG
Manufacturer Power Integrations
Catalog PMIC - Full, Half - Bridge Drivers
Description IC LLC CTRL MFET 275W ESIP16C
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Power Integrations
Packaging Tube/Rail
Status Active
Applications General Purpose
Load Type Inductive
Technology Power MOSFET
Rds On (Typ) 600 mOhm
Current - Peak Output 12.9A
Supply Voltage - Operating 11.4 V to 15 V
Voltage - Load 11.4 V to 15 V
Temperature Range - Operating -40°C to 150°C (TJ)
Features Auto Restart, Slew Rate Controlled
Fault Protection Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO
Mounting Through Hole
Case / Package 16-ESIP
Win Source Part Number 041020-LCS703HG
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LCS703HG CAD Model

Description

The Power Integrations 041020-LCS703HG is a power MOSFET with a voltage range of 11.4 V to 15 V and a Rds On (Typ) of 600 mOhm.

  • Peak Output Current: It has a peak output current of 12.9A
  • Applications: and is designed for use in general purpose applications.
  • Features: The device features auto restart, slew rate controlled, and fault protection including current limiting, over temperature, over voltage, short circuit, and UVLO.
  • Mounting: It is through-hole mounted
  • Package: and packaged in a 16-ESIP.
  • Temperature Range: The temperature range of the device is -40°C to 150°C (TJ).
