Same model may have multiple batches, images only for reference.

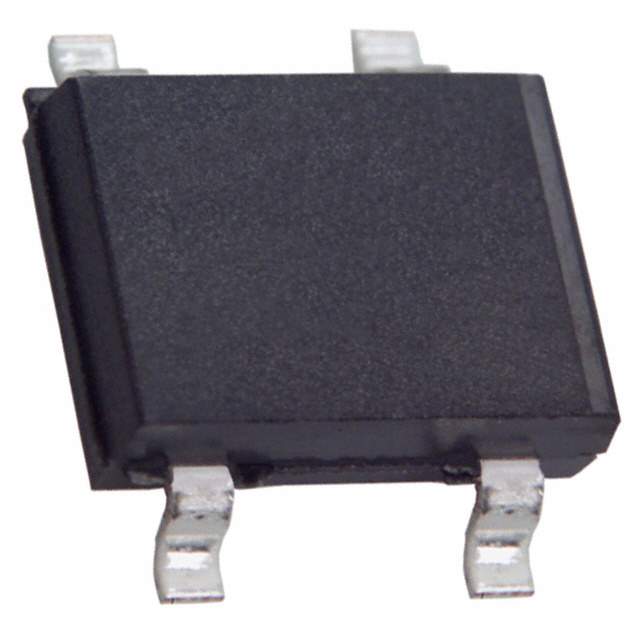

B10S_R2_00001 Real Image
Same model may have multiple batches, images only for reference.

B10S_R2_00001

Part No B10S_R2_00001
Manufacturer Panjit
Catalog Bridge Rectifiers
Description MINI SURFACE MOUNT GLASS PASSIVA / Bridge Rectifier Single Phase Standard 1 kV Surface Mount 4-MDI
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Bridge Rectifiers
Mfr Panjit International Inc.
Series B1S
Package Tape & Reel
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 1 kV
Current - Average Rectified (Io) 800 mA
Voltage - Forward (Vf) (Max) @ If 1 V @ 500 mA
Current - Reverse Leakage @ Vr 5 µA @ 1000 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting SMD (SMT)
Package / Case 4-SMD, Gull Wing
Supplier Device Package 4-MDI
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names 3757-B10S_R2_00001DKR,3757-B10S_R2_00001CT,3757-B10S_R2_00001TR
Standard Package 3,000
Win Source Part Number 977093-B10S_R2_00001
Ultra Librarian 3D Model Ultra Librarian B10S_R2_00001 CAD Model

Description

The Panjit bridge rectifier has an average rectified current of 800mA and a peak reverse voltage of 1kV.

  • Average Rectified Current: 800mA
  • Peak Reverse Voltage: 1kV
  • Mounting Type: Surface Mountable
  • Package: 4-SMD, Gull Wing
  • Category: Discrete Semiconductor Products
  • Market Popularity: High
  • Package: Tape and Reel
  • Quantity per Package: 3000
  • Estimated Production Lead Time: 15 weeks
  • HTSUS Code: 8541.10.0080
