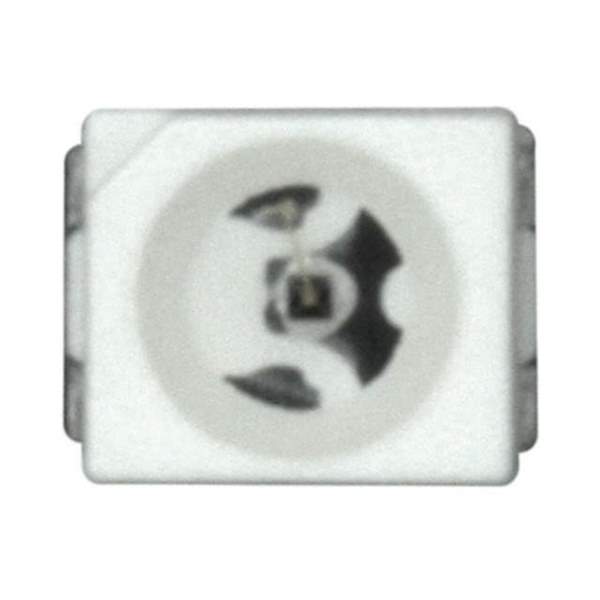

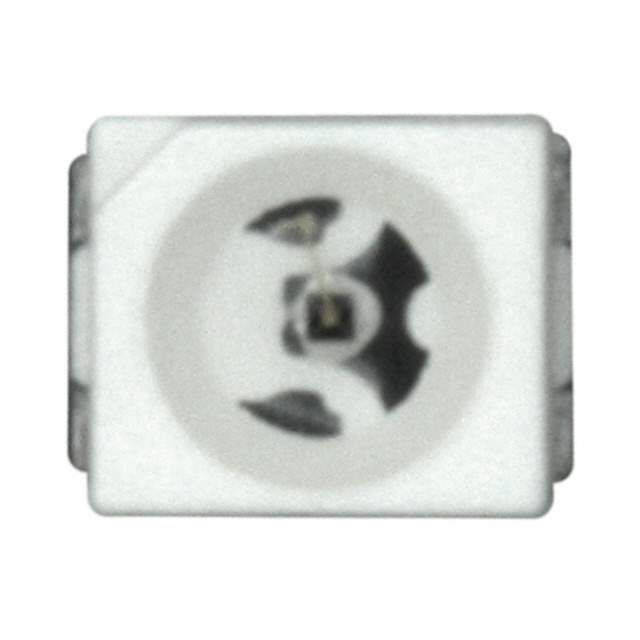

SFH4200-Z Real Image
Same model may have multiple batches, images only for reference.

SFH4200-Z

Part No SFH4200-Z
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Optics - LEDs - Light Pipes
Description Emitter Ir 950NM 100MA 2015
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Case / Package 2015
Case Code (Imperial) 2015
Case Code (Metric) 5138
Forward Current 100 mA
Forward Voltage 1.5 V
Lens Style Round
Max Operating Temperature 100 °C
Max Power Dissipation 35 mW
Min Operating Temperature -40 °C
Mount Surface Mount
Number of LEDs 1
Number of Pins 2
Orientation Top View
Peak Pulse Current 2.2 A
REACH SVHC No SVHC
Rise Time 10 ns
RoHS Compliant
Turn-Off Delay Time 10 ns
Turn-On Delay Time 10 ns
Viewing Angle 120 °
Wavelength 950 nm
Win Source Part Number 1115923-SFH4200-Z
Categories Optics - LEDs - Light Pipes
Manufacturer OSRAM Opto Semiconductors Inc.
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SFH4200-Z CAD Model

Description

The OSRAM Opto Semiconductors Inc. SFH4200-Z LED light pipe has a round lens style and a wavelength of 950 nm.

  • Lens Style: Round
  • Wavelength: 950 nm
  • Viewing Angle: 120 degrees
  • Peak Pulse Current: 2.2A
  • Forward Voltage: 1.5V
  • Forward Current: 100mA
  • Rise Time: 10ns
  • Mounting Type: Surface mountable
  • Case/Package: 2015
  • RoHS Compliant: Yes
