Same model may have multiple batches, images only for reference.

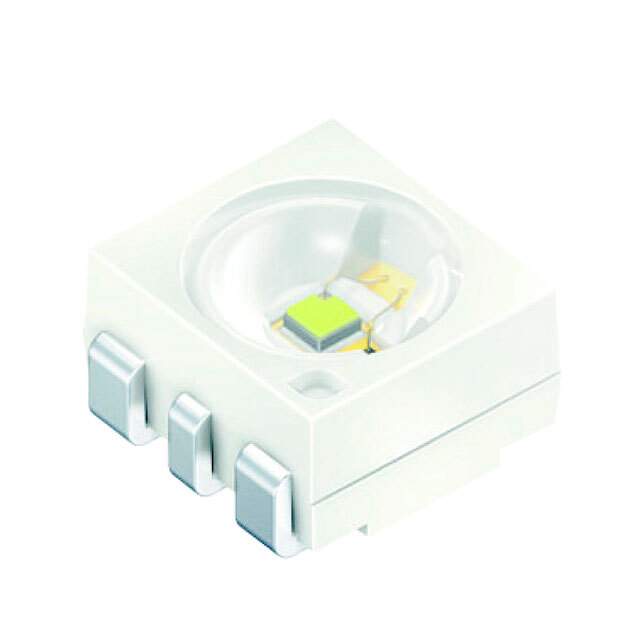

LW G6CP-EAFA-JKQL-1 Real Image
Same model may have multiple batches, images only for reference.

LW G6CP-EAFA-JKQL-1

Part No LW G6CP-EAFA-JKQL-1
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Optics - LEDs - Light Pipes
Description LW G6CP-EAFA-JKQL-1; Advanced Power TOPLED SERWhite LED; 5600K; PLCC 6; Round Lens
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Color White
Height 1.9 mm
Length 3.3 mm
Luminous Flux 33.5 lm
Luminous Intensity 11.3 cd
Max Operating Temperature 125 °C
Min Operating Temperature -40 °C
Viewing Angle 120 °
Width 3.4 mm
Win Source Part Number 1112342-LW G6CP-EAFA-JKQL-1
Categories Optics - LEDs - Light Pipes
Manufacturer OSRAM Opto Semiconductors Inc.
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LW G6CP-EAFA-JKQL-1 CAD Model

Description

The OSRAM Opto Semiconductors Inc. 1112342-LW G6CP-EAFA-JKQL-1 is a white LED light pipe with a length of 3.3 mm and a luminous intensity of 11.3 cd.

  • Color: White
  • Length: 3.3 mm
  • Luminous Intensity: 11.3 cd
  • Viewing Angle: 120 degrees
  • Height: 1.9 mm
  • Width: 3.4 mm
  • Luminous Flux: 33.5 lm
  • RoHS Compliance: Compliant with RoHS standards
  • Minimum Operating Temperature: -40 degrees Celsius
  • Maximum Operating Temperature: 125 degrees Celsius
