Same model may have multiple batches, images only for reference.

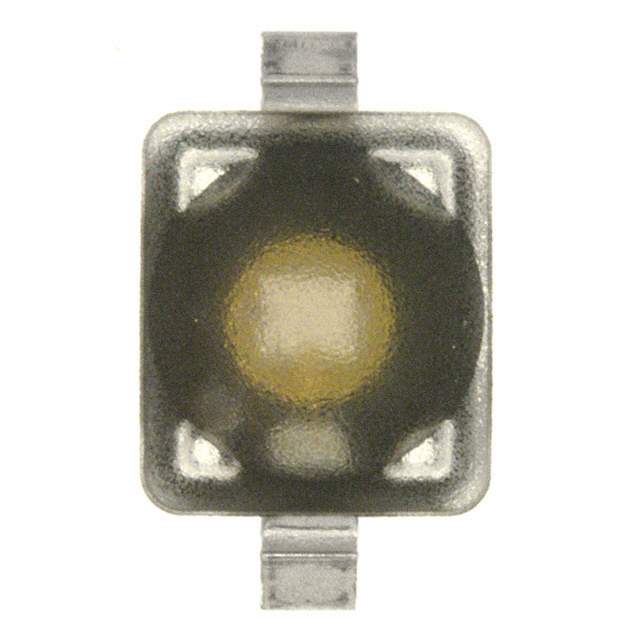

LD W5AP-3V8A-35-Z Real Image
Same model may have multiple batches, images only for reference.

LD W5AP-3V8A-35-Z

Part No LD W5AP-3V8A-35-Z
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog LED Lighting - Color
Description LED DIAMOND DRAGON BLU 455NM SMD / LED Lighting Color Diamond Dragon Blue 455nm (449nm ~ 461nm) 2-SMD, Gull Wing
Datasheet
LD W5AP-3V8A-35-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - Color LED Lighting
Mfr OSRAM Opto Semiconductors Inc.
Series Diamond Dragon
Package Tape & Reel
Product Status Obsolete
Color Blue
Wavelength 455nm (449nm ~ 461nm)
Current - Test 1.4A
Voltage - Forward (Vf) (Typ) 3.5V
Current - Max 2A
Luminous Flux @ Current/Temperature 1350mW (900mW ~ 1800mW)
Temperature - Test 25°C
Viewing Angle 140°
Mounting Type Surface Mount
Package / Case 2-SMD, Gull Wing
Supplier Device Package SMD
Size / Dimension 0.303" L x 0.264" W (7.70mm x 6.70mm)
Height - Seated (Max) 0.175" (4.45mm)
Thermal Resistance of Package 2.5°C/W
Standard Package 200 pcs
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 876964-LD W5AP-3V8A-35-Z
Ultra Librarian 3D Model Ultra Librarian LD W5AP-3V8A-35-Z CAD Model

Description

The LD W5AP-3V8A-35-Z is a blue color LED lighting module manufactured by OSRAM Opto Semiconductors Inc.

  • Category: Optoelectronics - Color LED Lighting
  • Series: Diamond Dragon series
  • Viewing Angle: 140 degrees
  • Forward Voltage: 3.5V
  • Maximum Current: 2A
  • Thermal Resistance: 2.5°C/W
  • Package: Tape and Reel
  • Standard Package: 200 pieces
  • Mounting Type: Surface Mount
