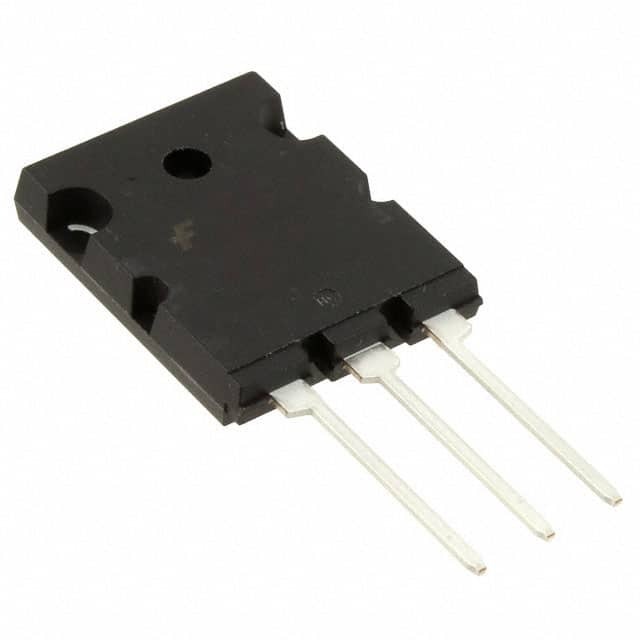

ON Semiconductor SGL40N150TU IGBT Overview

The SGL40N150TU is a high-performance insulated gate bipolar transistor (IGBT) developed by ON Semiconductor, a leader in energy-efficient innovations. This IGBT is designed to cater to a wide range of applications requiring efficient and reliable high-power switching. Its superior performance is attributed to ON Semiconductor's cutting-edge technology, which ensures minimal conduction and switching losses.

Key Features

• High Current Capability: The SGL40N150TU can handle a continuous collector current of up to 40A, making it suitable for high-power applications.
• High Voltage Rating: With a collector-emitter voltage rating of 1500V, this IGBT is ideal for circuits operating at high voltages, providing a reliable solution for power conversion systems.
• Low On-State Voltage Drop (Vce(sat)): The device exhibits a low on-state voltage drop, which enhances efficiency by reducing conduction losses.
• Fast Switching Speed: The IGBT offers fast switching characteristics, contributing to increased efficiency in applications where switching speed is critical.
• Co-Packaged Free Wheeling Diode: The SGL40N150TU comes with an integrated fast recovery diode, which simplifies the design and enhances performance in applications such as inverters and converters.

Applications

The ON Semiconductor SGL40N150TU is versatile and can be used in a variety of applications, including but not limited to:

• Uninterruptible Power Supplies (UPS)
• Power Factor Correction (PFC) circuits
• Induction Heating
• Renewable Energy Inverters
• Motor Drives
• Welding Equipment

Quality and Reliability

ON Semiconductor is committed to delivering high-quality products. The SGL40N150TU IGBT is built with robustness in mind, ensuring long-term reliability even under demanding conditions. Its construction is geared towards thermal stability and endurance, making it a trustworthy component for your power management solutions.

Environmental Considerations

The SGL40N150TU is also designed with environmental considerations in mind. It complies with RoHS directives, reflecting ON Semiconductor's dedication to reducing the environmental impact of their products and meeting global environmental standards.
