The NLASB3157MTR2G is a high-performance, dual SPDT (Single Pole Double Throw) analog switch from ON Semiconductor, designed to deliver precision and efficiency in a compact form factor. This advanced switch is a part of ON Semiconductor's portfolio of switch and multiplexer devices, which are renowned for their reliability and versatility in various applications.

Key Features

• Low On-Resistance: The device features ultra-low on-resistance of typically 0.5 ohms at 4.5V VCC, which helps in reducing power loss and improving efficiency in signal switching applications.
• Broad Voltage Range: It operates over a wide VCC range from 1.65V to 5.5V, making it suitable for interfacing with a variety of logic levels and supply voltages.
• High Current Handling: The switch can handle continuous current up to 250 mA, allowing it to be used in applications with higher current requirements.
• Low Crosstalk: Engineered to minimize signal interference, the NLASB3157MTR2G exhibits low crosstalk, which is crucial in maintaining signal integrity in complex circuits.
• Fast Switching Speeds: It offers fast switching speeds (tON and tOFF) of typically 4 ns, ensuring quick response times in critical applications.
• ESD Protection: The device includes built-in ESD protection circuitry, safeguarding it against electrostatic discharges and enhancing its durability.

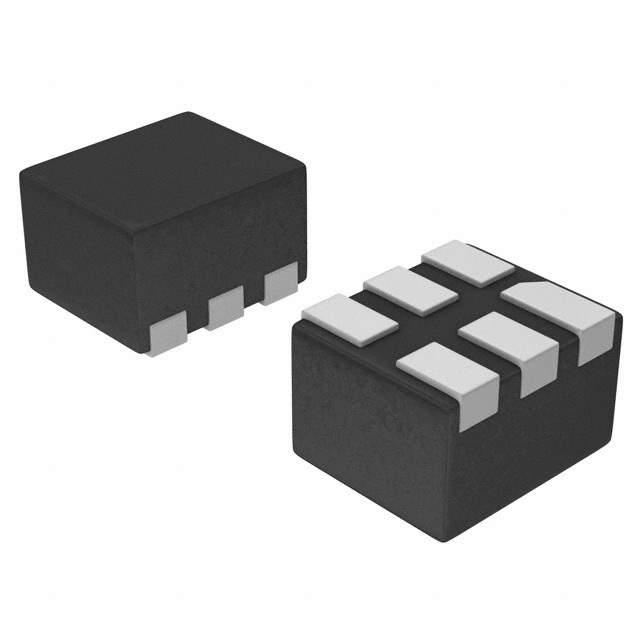

• Space-Saving Package: The NLASB3157MTR2G comes in a compact, space-saving MicroPak™ package, which is ideal for portable and space-constrained applications.

Applications

The NLASB3157MTR2G is suitable for a wide range of applications, including but not limited to:

• Cellular Phones
• PDA's
• Portable Media Players
• Data Communication Systems
• Signal Routing and Multiplexing
• Audio and Video Switching

With its robust design and superior performance characteristics, the NLASB3157MTR2G from ON Semiconductor is an excellent choice for designers looking to enhance the efficiency and functionality of their electronic systems.
