ON Semiconductor NLAS4684MNR2: A High-Performance Analog Switch

The NLAS4684MNR2 is a versatile, high-performance analog switch developed by ON Semiconductor, a leader in energy-efficient innovations. This advanced switch is designed to deliver exceptional signal integrity while maintaining low power consumption, making it an ideal choice for a wide range of applications including signal routing, data acquisition systems, and battery-powered devices.

Key Features:

• Low On-Resistance: The device boasts a low on-resistance (RON) typically around 4.5 ohms, ensuring minimal signal distortion and power loss.
• Wide Voltage Range: It operates over a broad voltage range from 1.65V to 4.3V, accommodating various logic levels and making it suitable for multi-voltage systems.
• Single-Supply Operation: The NLAS4684MNR2 is capable of single-supply operation, simplifying power management in complex circuits.
• High Current Handling: The switch can handle continuous current up to 300 mA, making it robust enough for demanding applications.
• Bidirectional Signal Flow: It supports bidirectional signal flow, offering greater flexibility in circuit design.
• Sub-1 V Signal Capability: The device can pass signals as low as 0 V, even when VCC is less than the logic threshold voltage.
• ESD Tolerance: It features a high level of Electrostatic Discharge (ESD) protection, withstanding ESD events up to ±20 kV.

Applications:

The NLAS4684MNR2 is engineered for multipurpose use across a variety of fields, including:

• Mobile Phones
• PDAs and Portable Devices
• Sample and Hold Circuits
• Audio and Video Signal Routing
• PCMCIA Cards
• Battery Management Systems

Package and Quality:

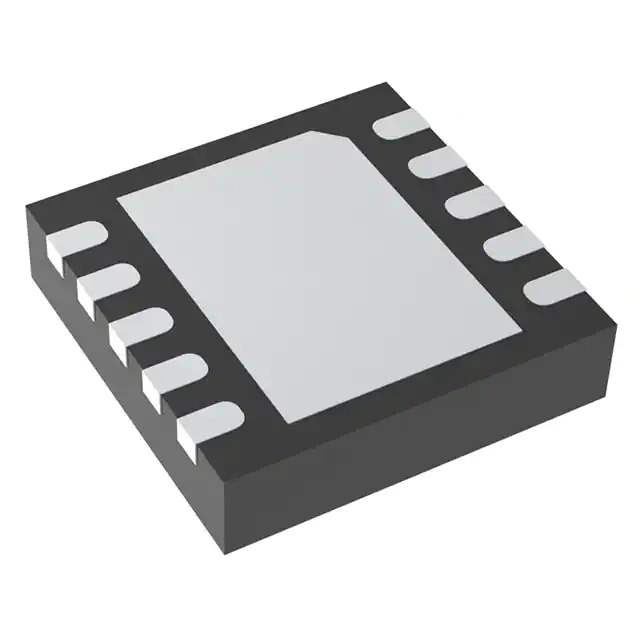

Encased in a micro-miniature, thin QFN package, the NLAS4684MNR2 is designed for space-constrained applications. The product adheres to the stringent quality standards of ON Semiconductor and is RoHS compliant, ensuring both environmental responsibility and reliability for customers.

With its combination of low on-resistance, high current handling, and ESD protection, the NLAS4684MNR2 from ON Semiconductor stands out as a high-quality component for designers seeking to optimize their analog switching capabilities.
