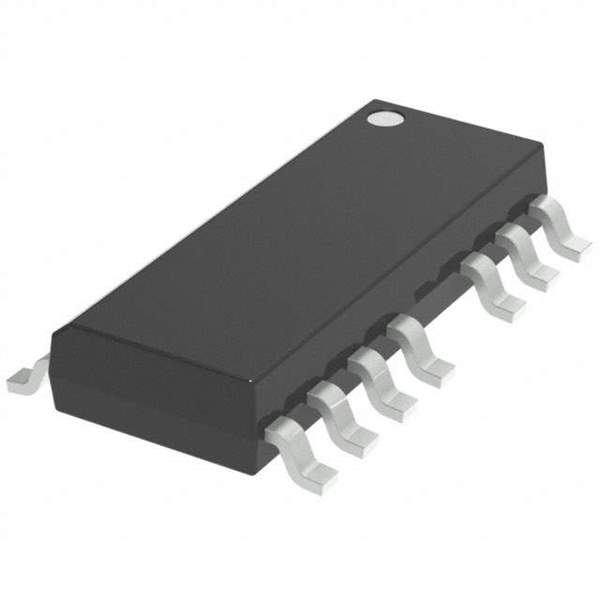

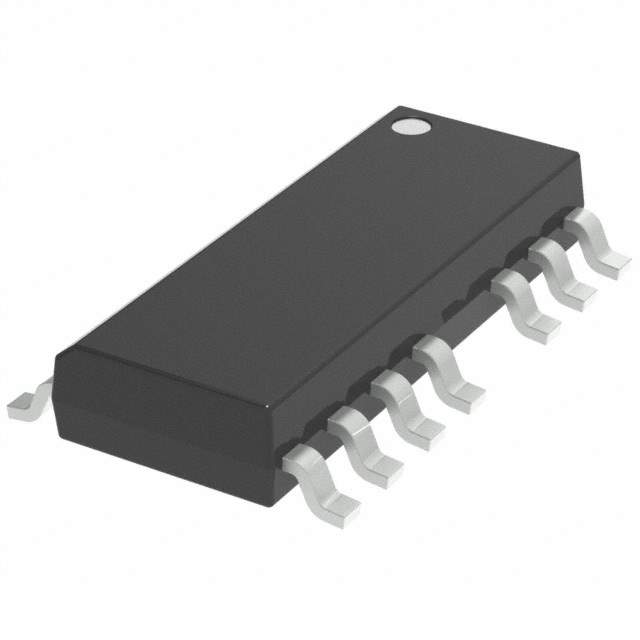

ON Semiconductor NCP1396ADR2G High-Efficiency PWM Controller

The NCP1396ADR2G from ON Semiconductor stands out as a high-performance, versatile PWM controller, specifically designed to cater to the demanding requirements of high-efficiency AC-DC power supplies. Engineered to drive a half-bridge topology, this controller integrates a plethora of features that facilitate the development of robust and efficient power conversion systems for a wide range of applications, including flat-panel televisions, desktop monitors, and other sophisticated electronic appliances.

One of the key attributes of the NCP1396ADR2G is its high switching frequency, which can reach up to 500 kHz. This allows for the use of smaller, more cost-effective magnetic components, resulting in a more compact power supply design. Moreover, the controller's ability to operate at such high frequencies without compromising efficiency is a testament to ON Semiconductor's dedication to innovation in power management technology.

The device comes equipped with adjustable dead time, which provides designers with the flexibility to optimize their system's performance by minimizing losses associated with power stage transitions. Additionally, the NCP1396ADR2G boasts a range of protection features that safeguard the power supply and the end application. These include overcurrent protection, brown-out detection, and an overvoltage protection circuit, which collectively enhance the reliability and longevity of the system.

Another significant advantage of the NCP1396ADR2G is its soft-start capability, which ensures a gradual increase in the output power during startup, thereby reducing stress on the power supply components. This feature, coupled with the controller's low startup current, minimizes power consumption and extends the overall product life.

Manufactured in a compact SOIC-16 package, the NCP1396ADR2G is designed for space-constrained applications while still delivering the high performance expected from modern power solutions. ON Semiconductor's commitment to quality and environmental sustainability is reflected in the controller's compliance with the RoHS directive, making it a suitable choice for eco-friendly and energy-efficient power supply designs.

In summary, the NCP1396ADR2G PWM controller from ON Semiconductor is a high-frequency, feature-rich solution that enables designers to create advanced power systems with exceptional efficiency, reliability, and compactness.
