ASX340AT2C00XPED0-KY-DRBR

Part No ASX340AT2C00XPED0-KY-DRBR
Manufacturer ON Semiconductor
Catalog Image Sensors, Camera
Description 1/4INCH COLOR CMOS NTSC/PAL DIGI
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Optical Sensors - Image Sensors, Camera
Mfr ON Semiconductor
Package Bulk
Product Status Obsolete
Type CMOS with Processor
Pixel Size 5.6µm x 5.6µm
Active Pixel Array 728H x 560V
Frames per Second 60
Voltage - Supply 1.7V ~ 1.95V

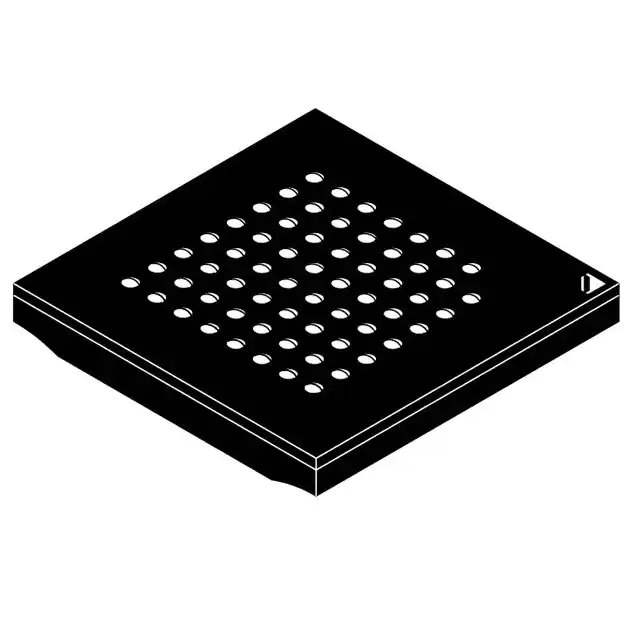

Package / Case 63-LFBGA
Supplier Device Package 63-IBGA (7.5x7.5)
Temperature Range - Operating -40°C ~ 105°C (TA)
Standard Package 1 pcs
REACH Status REACH Unaffected
ECCN OBSOLETE
Win Source Part Number 1116455-ASX340AT2C00XPED0-KY-DRBR
Ultra Librarian 3D Model Ultra Librarian ASX340AT2C00XPED0-KY-DRBR CAD Model

Description

The ASX340AT2C00XPED0-KY-DRBR is a high-performance imaging solution crafted by ON Semiconductor, a leading innovator in semiconductor technology. This advanced image sensor is designed to meet the rigorous demands of industrial, automotive, and security applications, where exceptional image clarity and reliability are paramount.

Key Features

  • High-Resolution Imaging: The product boasts a sophisticated CMOS sensor that delivers crystal-clear images, ensuring that even the smallest details are captured with precision.
  • Low-Light Performance: Engineered to perform in a variety of lighting conditions, this sensor excels in low-light environments, making it ideal for security cameras and automotive safety systems.
  • Wide Dynamic Range: With its wide dynamic range capabilities, the ASX340AT2C00XPED0-KY-DRBR can handle scenes with high contrast, capturing both dark and bright areas with equal clarity.
  • Fast Frame Rates: The sensor supports high-speed image capture, which is essential for applications that require quick image processing and real-time feedback.
  • Robust Design: ON Semiconductor's commitment to quality means that this product is designed to withstand the rigors of industrial environments, ensuring long-term reliability and performance.

Applications

The versatility of the ASX340AT2C00XPED0-KY-DRBR makes it suitable for a wide range of applications. It is particularly well-suited for:

  • Advanced Driver Assistance Systems (ADAS)
  • Industrial Automation and Inspection
  • Surveillance and Security Cameras
  • Machine Vision Systems

Technical Specifications

ON Semiconductor ensures that the ASX340AT2C00XPED0-KY-DRBR is built with the latest technology, providing superior performance specifications that include:

  • Resolution: High-resolution sensor for detailed imaging
  • Pixel Size: Optimized pixel architecture for enhanced sensitivity
  • Interface: User-friendly interface for seamless integration
  • Power Consumption: Energy-efficient design for extended operation

In conclusion, the ASX340AT2C00XPED0-KY-DRBR from ON Semiconductor is a state-of-the-art image sensor that offers unparalleled image quality, robustness, and versatility for a variety of high-demand applications. Its cutting-edge features and reliable performance make it an excellent choice for developers and manufacturers seeking to incorporate advanced imaging capabilities into their products.
