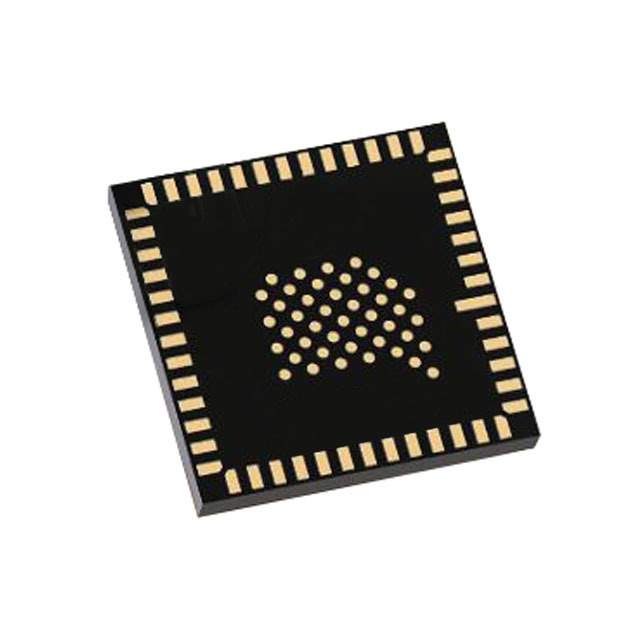

AR0521SR2C09SURA0-DP1

Part No AR0521SR2C09SURA0-DP1
Manufacturer ON Semiconductor
Catalog Image Sensors, Camera
Description 5MP 1/2 CIS SO / CMOS Image Sensor 2592H x 1944V 2.2µm x 2.2µm 52-PLCC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Image Sensors, Camera
Mfr onsemi
Package Tray
Type CMOS
Pixel Size 2.2µm x 2.2µm
Active Pixel Array 2592H x 1944V
Frames per Second 60
Supplier Device Package 52-PLCC
Base Product Number AR0521
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 168
Win Source Part Number 1030338-AR0521SR2C09SURA0-DP1
Ultra Librarian 3D Model Ultra Librarian AR0521SR2C09SURA0-DP1 CAD Model

Description

The ON Semiconductor AR0521SR2C09SURA0-DP1 is a cutting-edge image sensor designed to deliver superior image quality and performance for a wide range of applications. This sensor is part of ON Semiconductor's AR series, which is renowned for its high-quality imaging solutions. The AR0521 is specifically engineered to meet the demanding needs of both consumer and industrial imaging markets.

Key Features

  • Resolution: The AR0521 is a 5-megapixel sensor with a resolution of 2592 x 1944 pixels, providing crisp and clear images with fine details.
  • Pixel Size: It features a 1.12 µm BSI pixel design, which enhances low-light performance and ensures excellent image quality even in challenging lighting conditions.
  • Optical Format: The sensor has a 1/2.5-inch optical format, which is a common size for high-performance imaging applications, offering a good balance between sensitivity and compactness.
  • Frame Rate: It supports a high frame rate of up to 60 frames per second at full resolution, making it suitable for capturing fast-moving subjects or for applications requiring video capture with smooth motion.
  • Interface: The AR0521 comes with a versatile MIPI CSI-2 interface, ensuring compatibility with a wide range of processors and allowing for easy integration into existing systems.
  • Shutter Type: This sensor incorporates an electronic rolling shutter mechanism that provides efficient and reliable image capture.
  • Advanced Features: It includes advanced features such as automatic exposure control, white balance, and defect pixel correction, which enhance the overall imaging performance and reduce the need for post-processing.

Applications

The AR0521SR2C09SURA0-DP1 is ideal for a variety of applications, including:

  • Security and surveillance cameras
  • Action cameras
  • Drones and aerial imaging systems
  • Automotive in-vehicle cameras
  • Industrial machine vision systems
  • Medical imaging devices

With its robust feature set and versatile capabilities, the ON Semiconductor AR0521SR2C09SURA0-DP1 is a top choice for developers and manufacturers looking to incorporate high-quality imaging solutions into their products.
