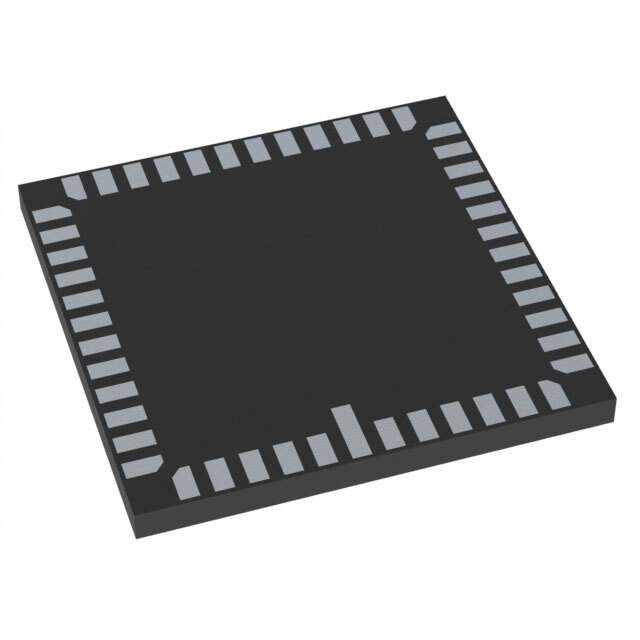

AR0237SRSC12SHRA0-DR

Part No AR0237SRSC12SHRA0-DR
Manufacturer ON Semiconductor
Catalog Image Sensors, Camera
Description IMAGE SENSOR 2MP 48MPLCC / CMOS Image Sensor 1928H x 1088V 3µm x 3µm 48-mPLCC (11.43x11.43)
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors>Image Sensors, Camera
Mfr ON Semiconductor
Series -
Package Tray
Type CMOS
Pixel Size 3µm x 3µm
Active Pixel Array 1928H x 1088V
Frames per Second 60
Voltage - Supply -
Package / Case 48-LCC
Supplier Device Package 48-mPLCC (11.43x11.43)
Temperature Range - Operating -
Base Product Number AR0237
Moisture Sensitivity Level (MSL) 4 (72 Hours)
REACH Status REACH Unaffected
HTSUS 0000.00.0000
Standard Package 1,520 pcs
Win Source Part Number 1381442-AR0237SRSC12SHRA0-DR
Ultra Librarian 3D Model Ultra Librarian AR0237SRSC12SHRA0-DR CAD Model

Description

The ON Semiconductor AR0237SRSC12SHRA0-DR is a high-performance CMOS image sensor designed to meet the rigorous demands of industrial, automotive, and surveillance applications. With its cutting-edge technology and superior imaging capabilities, this sensor is engineered to deliver high-quality images in a wide range of lighting conditions.

Key Features:

  • Resolution: The sensor boasts a 2.1 Megapixel resolution, providing clear and detailed images with a pixel array of 1928 (H) x 1088 (V).
  • Pixel Size: With a pixel size of 3.0 µm x 3.0 µm, it offers an optimal balance between sensitivity and resolution, making it ideal for applications where image clarity is paramount.
  • Optical Format: The 1/2.7-inch optical format allows for a compact lens design while maintaining excellent image quality.
  • Frame Rate: High-speed image capture is possible thanks to the sensor's ability to deliver up to 1080p resolution at 60 frames per second (fps).
  • Dynamic Range: It features an impressive dynamic range that ensures detailed images even in scenes with challenging lighting conditions.
  • Interface: The sensor supports a four-lane MIPI CSI-2 interface, providing high-speed data transfer and easy integration with a wide range of processors and SoCs.
  • Shutter: The electronic rolling shutter with global reset release allows for smooth capture of moving objects without distortion.

Applications:

The AR0237SRSC12SHRA0-DR is versatile and can be used in various applications, including:

  • Advanced Driver Assistance Systems (ADAS)
  • Security and Surveillance Cameras
  • Industrial Machine Vision Systems
  • Drone Imaging Systems
  • Video Conferencing Equipment

ON Semiconductor's commitment to quality and performance is evident in the AR0237SRSC12SHRA0-DR image sensor. By incorporating this sensor into your designs, you can ensure that your products will provide exceptional imaging performance in even the most demanding environments.
