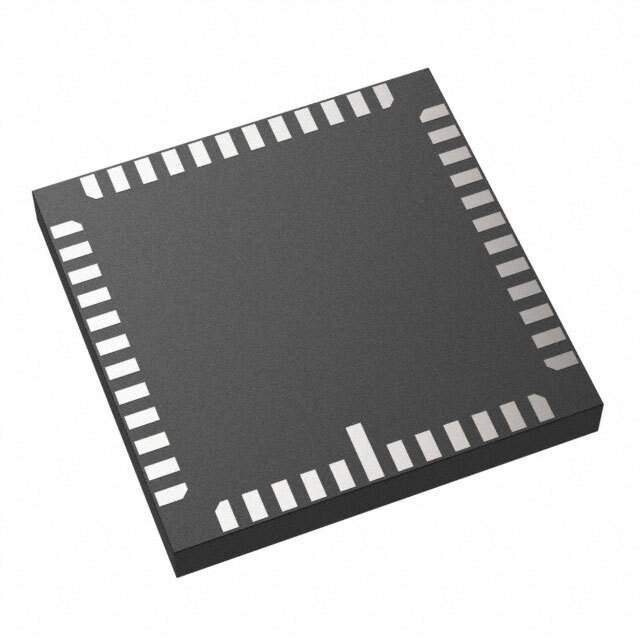

The AR0130CSSC00SPCA0-DPBR2 is a high-performance CMOS digital image sensor from ON Semiconductor. This sensor is designed to deliver exceptional image quality with its 1/3-inch optical format, providing a resolution of 1.2 megapixels. The sensor's advanced pixel technology enables it to capture images with impressive clarity, even in challenging lighting conditions.

Featuring ON Semiconductor's DigitalClarity® technology, the AR0130CSSC00SPCA0-DPBR2 ensures reduced noise levels and enhanced low-light performance. This makes the sensor ideal for a wide range of applications, including surveillance, automotive, industrial, and medical imaging systems. With its ability to perform in both daylight and low-light conditions, the sensor is versatile and can adapt to various environments.

Key Features:

• Resolution: 1.2 Megapixel (1280 x 960 pixels)
• Optical Format: 1/3-inch
• Frame Rate: Up to 45 frames per second at full resolution
• Pixel Size: 3.75 µm x 3.75 µm
• Shutter Type: Electronic rolling shutter
• Sensitivity: Enhanced sensitivity for low-light performance
• Data Interface: High-speed serial interface
• Dynamic Range: 70 dB linear, up to 100 dB in HiDy mode
• Supply Voltage: Core 1.2V, Analog 2.8V, I/O 1.7V to 3.1V

The AR0130CSSC00SPCA0-DPBR2 is also equipped with sophisticated camera functions such as automatic exposure control, automatic gain control, automatic white balance, and a programmable region of interest. These features allow for fine-tuning to meet specific application requirements and ensure optimal image quality.

ON Semiconductor's commitment to quality and performance is evident in the AR0130CSSC00SPCA0-DPBR2 image sensor. It is designed for easy integration into a variety of systems with its compact size and flexible configuration options. Whether you're developing advanced security systems or innovative visual applications, the AR0130CSSC00SPCA0-DPBR2 offers the reliability and performance necessary to meet the demands of your imaging solutions.
