The PCA9306GM,125 is a versatile, bidirectional voltage-level translator from NXP Semiconductors, designed to provide a seamless interface between devices operating at different voltage levels. This integrated circuit (IC) is particularly useful in applications where the communication between components requires voltage level shifting, such as between a low-voltage microcontroller and a higher-voltage peripheral.

Key Features

• Dual Bidirectional I2C-Bus and SMBus Voltage-Level Translator: The PCA9306GM,125 enables direct bidirectional voltage translation between I2C-bus or SMBus levels, facilitating communication between devices with varying logic levels.
• Wide Voltage Range: It supports a wide range of supply voltages from 1.2V to 3.3V on the A-side (Vref1) and 1.8V to 5.5V on the B-side (Vref2), making it highly adaptable to different system requirements.
• High-Speed Operation: This IC can support I2C-bus and SMBus signal speeds up to 1 MHz, ensuring compatibility with high-speed interfaces.
• Low Standby Current: The PCA9306GM,125 is designed for power-sensitive applications, with a low standby current that helps conserve energy in battery-operated devices.
• No Direction-Control Signal Needed: The automatic direction sensing feature eliminates the need for a direction-control signal, simplifying the circuit design and reducing the number of required GPIOs.

Applications

The PCA9306GM,125 is ideal for a variety of applications across different industries. It is commonly used in:

• Cell phones, where it bridges the voltage gap between the battery and the logic levels.
• Notebooks, tablets, and other portable devices that require level shifting for interfacing between different voltage domains.
• Industrial and telecom applications where robust level translation is critical for interfacing with peripheral devices.

Package and Quality

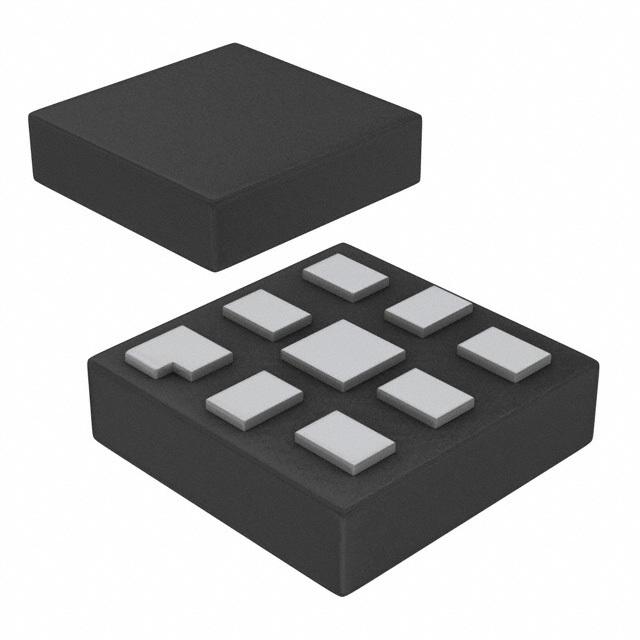

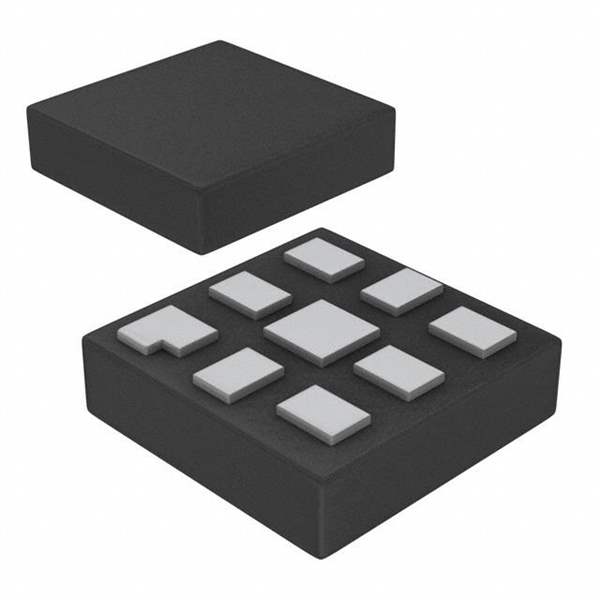

The PCA9306GM,125 is offered in a small, leadless 8-pin TSSOP (MSOP) package, which is suitable for space-constrained applications. NXP's commitment to quality ensures that this product meets stringent industry standards for reliability and performance.

With its comprehensive set of features and flexible applications, the PCA9306GM,125 from NXP Semiconductors is an essential component for designers looking to bridge the gap between different voltage levels in their electronic systems.
