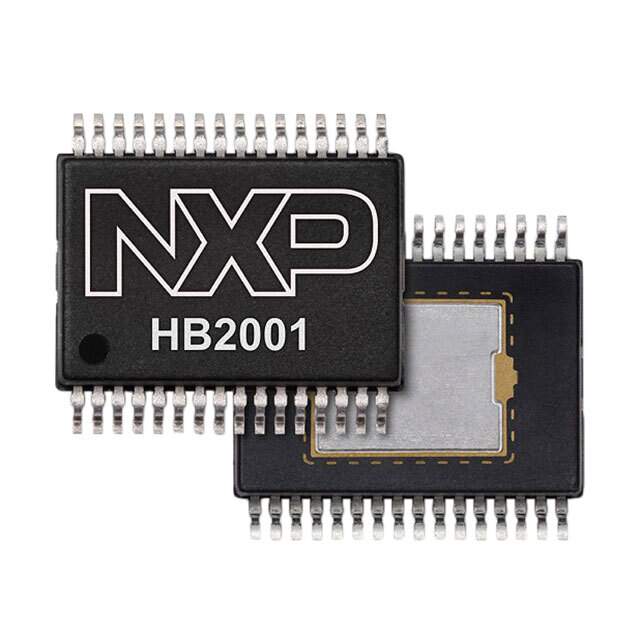

Product Overview: MC33HB2001EKR2 by NXP

The MC33HB2001EKR2 is a high-performance H-bridge driver IC from NXP Semiconductors, designed to efficiently control DC motors and other inductive loads in automotive and industrial applications. This advanced motor driver integrates a wealth of features to ensure precise control, robust protection, and operational reliability.

Key Features:

• High-Voltage Operation: The MC33HB2001EKR2 is capable of operating at a wide voltage range, accommodating various application requirements.
• Dual H-Bridge: With its dual H-bridge configuration, the device can drive two DC motors independently or a single stepper motor in a bi-directional manner, offering flexibility in control schemes.
• Current Sense Amplifiers: Integrated current sense amplifiers provide real-time feedback on motor current, enabling precise control and monitoring of the load.
• Protection Features: The device includes multiple protection features such as overcurrent, short circuit, under-voltage lockout, and thermal shutdown to safeguard the IC and the system it controls.
• Power Saving Modes: To enhance energy efficiency, the MC33HB2001EKR2 offers low-power modes, reducing power consumption when the motor is inactive.

Applications:

The versatility of the MC33HB2001EKR2 makes it suitable for a wide range of applications, including but not limited to:

• Automotive systems such as power mirrors, door locks, and HVAC flap control
• Industrial automation systems
• Robotics and drones
• Consumer electronics

Technical Specifications:

With a package size designed for space-constrained environments, the MC33HB2001EKR2 delivers high efficiency and performance. The device is available in a compact 32-pin QFN package, ensuring a minimal footprint on the PCB.

Conclusion:

The MC33HB2001EKR2 from NXP stands out as a robust and flexible solution for driving motors across a diverse array of applications. Its integration of advanced control features and protective measures makes it a reliable choice for designers seeking to enhance the performance and safety of their motor control systems.
