Product Overview: NXP MC33186HVW2

The NXP MC33186HVW2 is a sophisticated automotive H-Bridge driver designed to accommodate a wide range of applications that require motor control. Known for its robustness and efficiency, this high-quality driver IC is particularly suited for DC motors and other inductive loads in automotive environments.

Featuring a 5.0 V to 40 V operating voltage range, the MC33186HVW2 provides a flexible solution for systems that experience wide fluctuations in power supply. This makes it an excellent choice for automotive powertrain applications, climate control, and antilock braking systems, where reliability under varying voltage conditions is crucial.

One of the key advantages of the MC33186HVW2 is its high current handling capability, with a continuous output current rating of up to 5 A and a peak current up to 10 A. This enables the driver to handle heavy-duty operations without compromising performance. Additionally, it includes features such as current sense output, which provides feedback on the motor current, allowing for precise control and monitoring of the load.

The device is also equipped with a wide range of protective features that safeguard the IC against harsh automotive conditions. These include over-temperature shutdown, over-current limiting, and undervoltage shutdown. The presence of these protective measures ensures the longevity and reliability of both the driver and the system it controls.

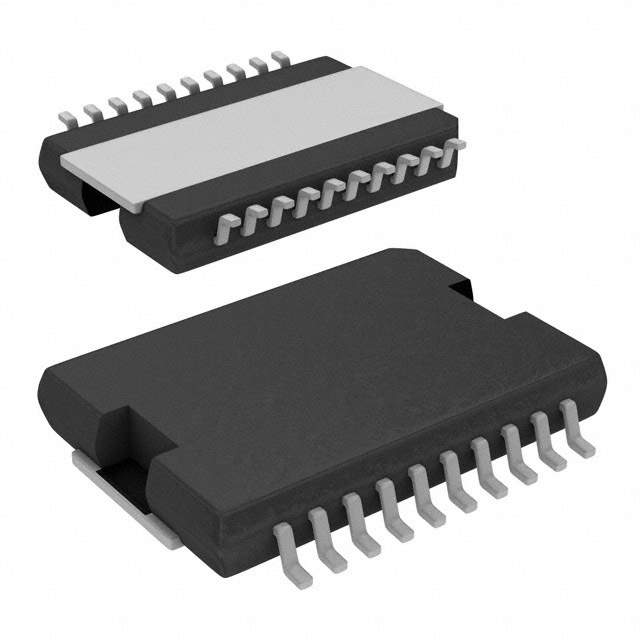

The MC33186HVW2's compact HSSOP20 package is designed to save space on the PCB while still offering excellent thermal performance. This makes it a favorable choice for designs where space is at a premium but thermal management is a concern.

For designers looking for a motor driver that can deliver high performance with robust protection features, the NXP MC33186HVW2 stands out as a top contender. Its combination of high-current capability, wide voltage range, and comprehensive protective features make it an ideal choice for demanding automotive applications.
