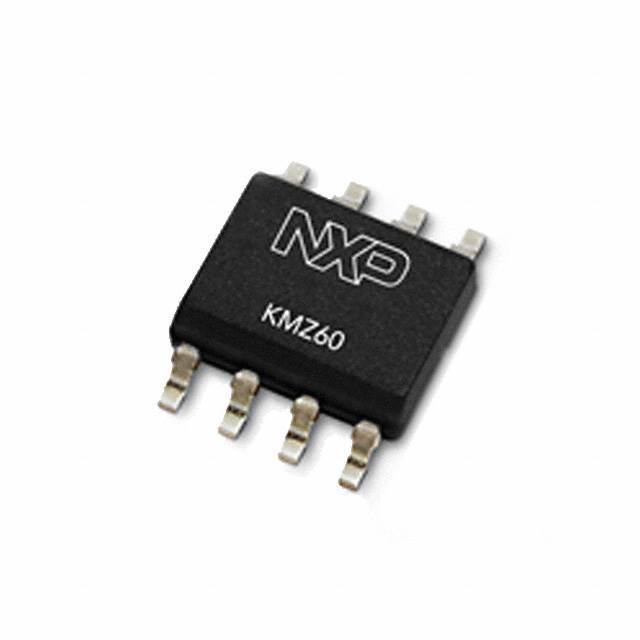

The NXP KMZ60,115 is a cutting-edge angular sensor designed for high precision angle measurement. This versatile sensor is a part of NXP's advanced sensor solutions, which are well-regarded for their reliability and performance in various applications. The KMZ60,115 is an ideal choice for industries requiring precise angular detection, such as automotive, industrial automation, and robotics.

Key Features

• Magnetic Angle Sensor: The KMZ60,115 operates by detecting the magnetic field angle, providing accurate measurements for rotational positions.
• Integrated MagnetoResistive Technology: It incorporates NXP's high-sensitivity MagnetoResistive (MR) technology, ensuring exceptional accuracy and stability.
• Wide Angular Range: The sensor is capable of full 360-degree angle measurement, which makes it highly versatile for various applications.
• Temperature Compensated: The KMZ60,115 is designed to perform consistently across a wide temperature range, making it suitable for harsh environments.
• Analog and Digital Outputs: It provides both analog and digital outputs, allowing for easy integration with other electronic systems.

Applications

The NXP KMZ60,115 is widely used in a variety of applications where precise angle measurement is crucial. Some typical applications include:

• Steering angle sensing in vehicles
• Position detection in industrial robotics
• Rotary encoders for motor control systems
• Wind vane orientation for renewable energy systems

Technical Specifications

Some of the key technical specifications of the KMZ60,115 include:

• Supply Voltage: 4.5 V to 5.5 V
• Operating Temperature Range: -40°C to +150°C
• Output Signal: Sinusoidal and Cosinusoidal analog voltages, Digital PWM
• Sensitivity: High sensitivity for small magnetic fields

Overall, the NXP KMZ60,115 represents a robust and reliable solution for precise angle measurement. Its integration of advanced technologies and wide operating range make it a top choice for engineers and designers across various sectors.
