Product Overview: IP4064CX8/LF/P,135 from NXP Semiconductors

The IP4064CX8/LF/P,135 is a high-performance, integrated passive device designed and manufactured by NXP Semiconductors, a leader in the semiconductor industry. This compact, multifunctional component is engineered to provide a combination of ESD protection and signal filtering, making it an ideal solution for safeguarding and enhancing the performance of high-speed data lines and interfaces.

Key Features

• ESD Protection: The device offers robust electrostatic discharge (ESD) protection, ensuring the safeguarding of sensitive electronic components against static electricity and surges. It complies with the IEC61000-4-2 standard, which defines the requirements for ESD immunity in electronic equipment.
• Signal Filtering: It incorporates integrated filters to suppress electromagnetic interference (EMI), providing cleaner signal transmission and improved data integrity. This is particularly important for maintaining the quality of high-speed signals that are susceptible to noise.

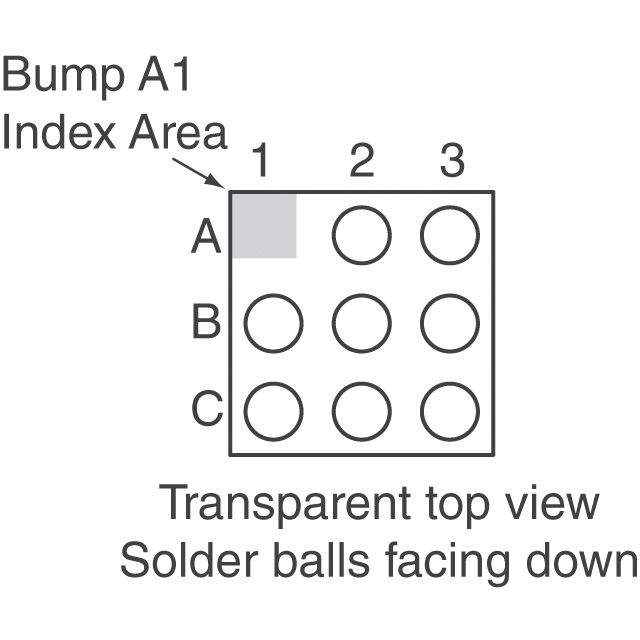

• Compact Footprint: Housed in a small, leadless package, the IP4064CX8/LF/P,135 is designed for space-constrained applications. Its footprint is optimized for easy integration into a wide range of electronic products.
• Low Capacitance: The device features low line capacitance, which is critical for maintaining signal integrity without compromising the speed or bandwidth of the data line.

Applications

The IP4064CX8/LF/P,135 is versatile and can be used in various applications that require both ESD protection and signal filtering. It is particularly suitable for:

• High-speed USB interfaces
• HDMI and DisplayPort interfaces
• Mobile and portable devices
• Consumer electronics such as TVs, set-top boxes, and gaming consoles
• Communication systems and data transfer equipment

Quality and Reliability

NXP Semiconductors is committed to delivering products of the highest quality and reliability. The IP4064CX8/LF/P,135 is produced with stringent quality control processes and is designed to meet the rigorous demands of the electronics industry. Customers can trust in the durability and performance of this integrated passive device for their critical applications.

With its combination of ESD protection, signal filtering, and a compact form factor, the IP4064CX8/LF/P,135 from NXP Semiconductors represents a smart choice for designers looking to enhance the resilience and performance of their electronic products.
