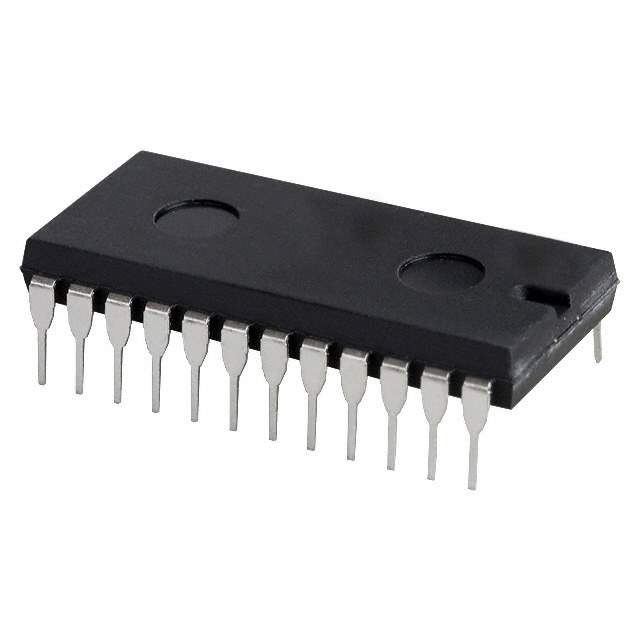

NXP HEF4515BP 4-bit Latch/4-to-16 Line Decoder

The NXP HEF4515BP is a versatile integrated circuit designed for various digital applications. It is a high-performance CMOS (Complementary Metal-Oxide-Semiconductor) device that combines a 4-bit transparent latch and a 4-to-16 line decoder in a single package. This IC is part of the HEF4000 family, known for its robustness and compatibility with a wide range of digital systems.

Key Features

• 4-Bit Latch: The transparent latch feature allows data to flow from the inputs to the outputs when the latch-enable (LE) input is high, and it retains the data when LE is low.
• 4-to-16 Line Decoder: The decoder function takes the 4-bit input and activates one of the 16 output lines, making it ideal for demultiplexing applications.
• Binary Addressing: Inputs are binary weighted, which means they can easily interface with other binary systems.
• High Fan-out: The IC is capable of driving standard TTL loads, allowing multiple devices to be driven without the need for additional buffers.
• Standardized Symmetrical Output Characteristics: This ensures consistent performance and reliability across different operating conditions.
• Wide Operating Voltage: The HEF4515BP operates across a wide voltage range, making it suitable for various power environments.
• Static Operation: The device is designed to maintain its state without the need for a clock signal, which simplifies the design of static systems.

Applications

The NXP HEF4515BP is widely used in digital systems that require data distribution and decoding. Its applications include:

• Memory address decoding
• Control signal generation
• Function selection in microprocessor systems
• Relay, solenoid, and LED display drivers

With its combination of a latch and decoder, the HEF4515BP is an excellent choice for designers looking for a compact, efficient solution for their digital decoding needs. The device's ease of use and high integration level make it a go-to component for a variety of digital and logic-based applications.
