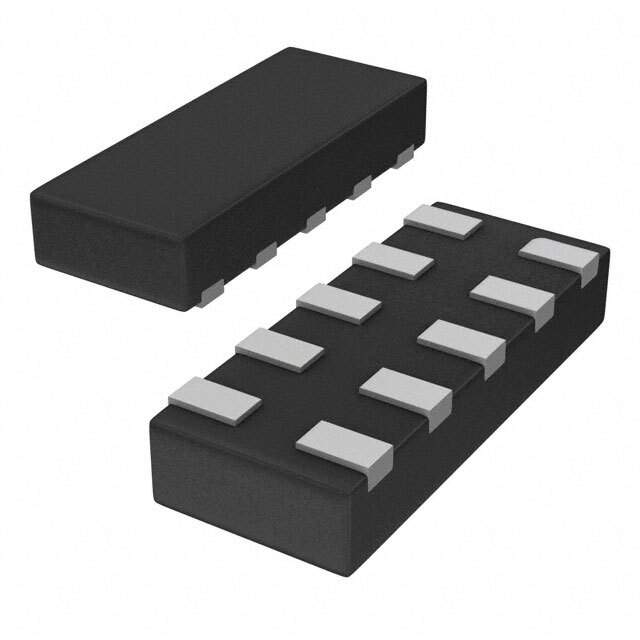

PHDMI2F4X Real Image
Same model may have multiple batches, images only for reference.

PHDMI2F4X

Part No PHDMI2F4X
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 4.6VC DFN2510A-10 / 4.6V (Typ) Clamp 5.2A (8/20µs) Ipp Tvs Diode Surface Mount DFN2510A-10
Datasheet
PHDMI2F4X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Nexperia USA Inc.
Package Tape & Reel
Type Steering (Rail to Rail)
Unidirectional Channels 4
Voltage - Breakdown (Min) 6V
Voltage - Clamping (Max) @ Ipp 4.6V (Typ)
Current - Peak Pulse (10/1000µs) 5.2A (8/20µs)
Power Line Protection Yes
Applications HDMI
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 10-XFDFN
Supplier Device Package DFN2510A-10
Base Product Number PHDMI2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names 934068932115,568-12544-6-ND,568-12544-1,568-12544-1-ND,568-12544-2,568-12544-2-ND,1727-2258-1,1727-2258-2,568-12544-6,1727-2258-6,PHDMI2F4
Standard Package 5,000
Win Source Part Number 1084722-PHDMI2F4X
Ultra Librarian 3D Model Ultra Librarian PHDMI2F4X CAD Model

Description

The PHDMI2F4X is a high-quality TVS diode designed for circuit protection in HDMI applications.

  • Manufacturer: Nexperia USA Inc.
  • Type: Steering (rail to rail)
  • Channels: Four unidirectional
  • Breakdown Voltage: 6V
  • Clamping Voltage: 4.6V (typ) @ Ipp
  • Feature: Power line protection
  • Peak Pulse Current: 5.2A (10/1000µs)
  • Case: 10-XFDFN
  • Temperature Range: -40°C ~ 85°C (TA)
