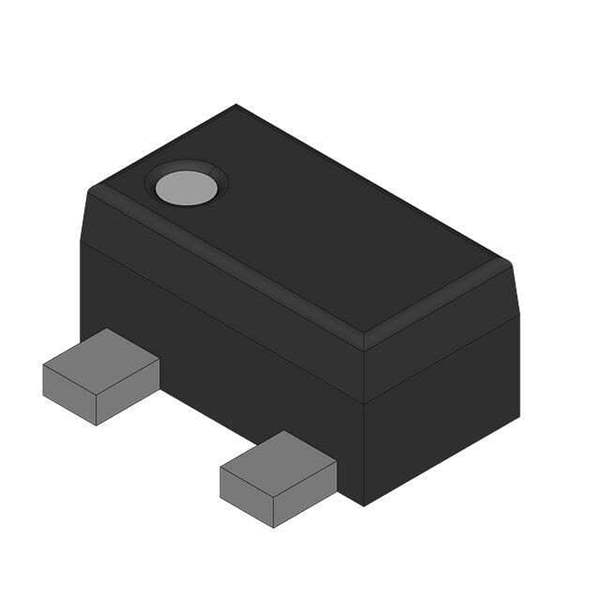

BZB984-C13,115 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

BZB984-C13,115

Part No BZB984-C13,115
Manufacturer Nexperia USA Inc.
Catalog Diodes - Zener - Arrays
Description NOW NEXPERIA BZB984-C13 - ZENER / Zener Diode Array 1 Pair Common Anode 13 V 265 mW ±5% SOT-663
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Zener - Arrays
Mfr Nexperia USA Inc.
Package Bulk
Configuration 1 Pair Common Anode
Voltage - Zener (Nom) (Vz) 13 V
Tolerance ±5%
Power - Max 265 mW
Impedance (Max) (Zzt) 10 Ohms
Current - Reverse Leakage @ Vr 100 nA @ 8 V
Voltage - Forward (Vf) (Max) @ If 900 mV @ 10 mA
Mounting SMD (SMT)
Package / Case SOT-663
Supplier Device Package SOT-663
Base Product Number BZB984-C13
HTSUS 0000.00.0000
Other Names 2156-BZB984-C13,115,NEXNXPBZB984-C13,115
Standard Package 1
Win Source Part Number 1050198-BZB984-C13,115
Ultra Librarian 3D Model Ultra Librarian BZB984-C13,115 CAD Model

Description

The BZB984-C13,115 is a Zener diode array designed for use in a variety of electronic applications.

  • Configuration: 1 pair common anode
  • Voltage Rating: 13V
  • Maximum Power: 265mW
  • Package: SMD (SMT)
  • Mounting: Bulk package
  • Standard Package: 1
  • Tolerance: ±5%
  • Current Reverse Leakage @ Vr: 100nA @ 8V
  • Impedance (Max) (Zzt): 10 Ohms
  • Device Package: SOT-663
  • Manufacturer: Nexperia USA Inc.
