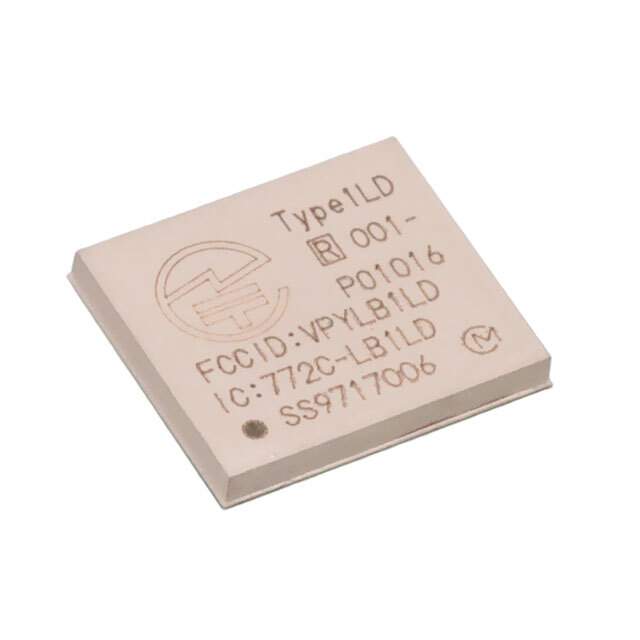

LBEE5PA1LD-005 Real Image
Same model may have multiple batches, images only for reference.

LBEE5PA1LD-005

Part No LBEE5PA1LD-005
Manufacturer Murata Electronics North America
Catalog RF Receivers
Description RX TXRX MOD WIFI BLE SMD / Bluetooth, WiFi 802.11b/g/n, Bluetooth v4.2 Transceiver Module 2.4GHz Antenna Not Included Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Transceiver Modules and Modems
Mfr Murata Electronics
Series WICED
Package Tape & Reel
RF Family/Standard Bluetooth, WiFi
Protocol 802.11b/g/n, Bluetooth v4.2
Modulation CCK, DSSS, OFDM
Frequency 2.4GHz
Data Rate 96Mbps
Serial Interfaces ADC, GPIO, I²C, PWM, SPI, UART
Antenna Type Antenna Not Included
Utilized IC / Part CYW43438
Mounting SMD (SMT)
Temperature Range - Operating -40°C ~ 85°C
Package / Case Module
Base Product Number LBEE5
MSL Level 3 (168 Hours)
ECCN 5A992C
HTSUS 8517.62.0090
Other Names 490-18385-6,490-18385-1,490-18385-2
Standard Package 1,000
Win Source Part Number 1156396-LBEE5PA1LD-005
Ultra Librarian 3D Model Ultra Librarian LBEE5PA1LD-005 CAD Model

Description

The WICED RF/IF and RFID RF Transceiver Modules and Modems are a high-quality and reliable product from Murata Electronics.

  • Frequency: 2.4GHz
  • Frequency Range: 802.11b/g/n, Bluetooth v4.2
  • Data Rate: 96Mbps
  • Packaging: tape & reel
  • Package Quantity: 1,000
  • Modulation: CCK, DSSS, OFDM
  • Serial Interfaces: ADC, GPIO, I²C, PWM, SPI, UART
  • Temperature Range: -40°C ~ 85°C
  • ECCN: 5A992C
