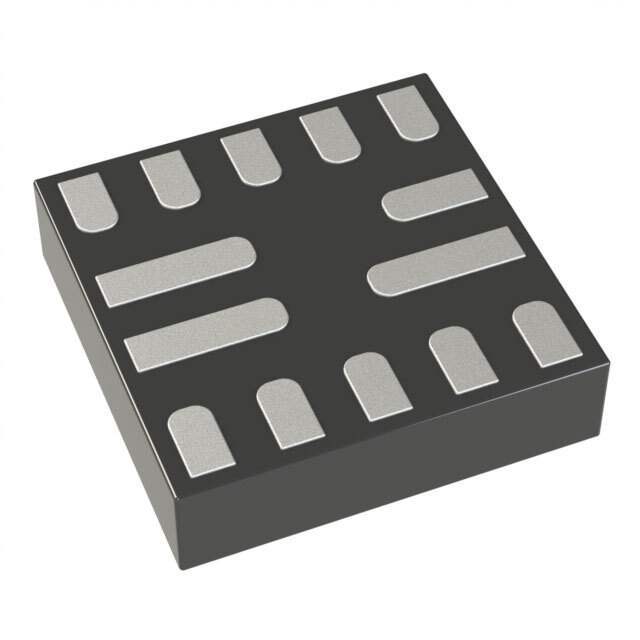

MPM3824CGPA-Z Monolithic Power Systems Inc.
Same model may have multiple batches, images only for reference.

MPM3824CGPA-Z

Part No MPM3824CGPA-Z
Manufacturer MPS Industries, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description 2.75V TO 6V, 2A, ULTRA-SMALL POW
Datasheet
MPM3824CGPA-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount- DC DC Converters
Mfr Monolithic Power Systems Inc.
Packaging  Tape & Reel (TR) Cut Tape (CT)
Part Status Active
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 2.75V
Voltage - Input (Max) 6V
Voltage - Output 1 0.6 ~ 6V
Current - Output (Max) 2A
Ultra Librarian 3D Model Ultra Librarian MPM3824CGPA-Z CAD Model

Description

The MPM3824C is synchronous, step-down power module with an integrated inductor. The MPM3824C achieves 2A of continuous output current (IOUT) from a 2.75V to 6V input voltage (VIN) range with excellent load and line regulation. The MPM3824C works in forced continuous conduction mode (FCCM) and has a small output voltage (VOUT) ripple with one output capacitor, making it well-suited for optical modules, FPGA, ASIC, and other applications requiring low ripple noise as well as a small PCB area.
