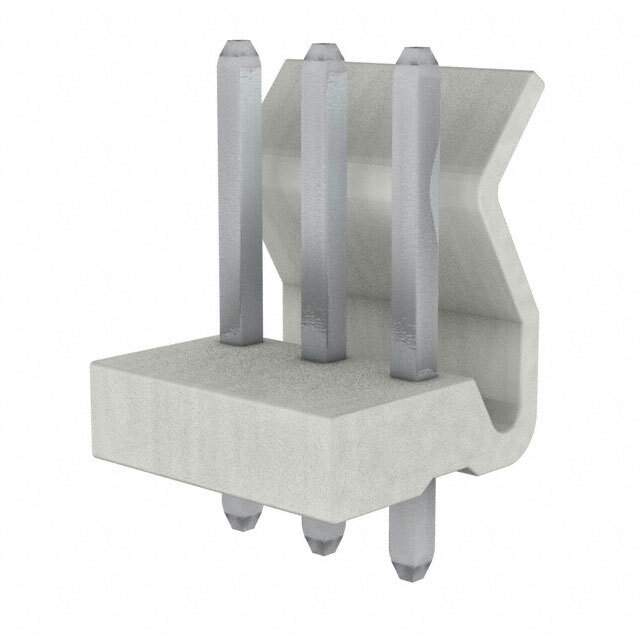

9652038

Name: 9652038
Brand: Molex, LLC
SKU: 1314983
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	9652038
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Molex
Series	KK396, 5273
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.156" (3.96mm)
Number of Positions	3
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 1 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Friction Lock
Contact Length - Mating	0.419" (10.65mm)
Contact Length - Post	0.142" (3.60mm)
Overall Contact Length	0.687" (17.45mm)
Insulation Height	0.482" (12.25mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	200.0µin (5.08µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Insulation Color	Natural
Applications	Automotive, General Purpose, Industrial, Medical, Telecommunications
Base Product Number	000965
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1314983-9652038
Ultra Librarian 3D Model	Ultra Librarian 9652038 CAD Model

Description

The Molex KK396 series male pin headers are ideal for use in automotive, industrial, medical, and telecommunications applications.

Pitch: 0.156” (3.96mm)
Shroud: One Wall
Fastening Type: Friction Lock
Voltage Rating: 600V
Contact Material: Brass
Contact Finish: Tin
Insulation Material: Polyamide (PA66), Nylon 6/6
Insulation Color: Natural
Mounting: Through-Hole
Contact Length: 0.687” (17.45mm)
Flammability Rating: UL94 V-2
ECCN: EAR99
Packaging: Bulk
