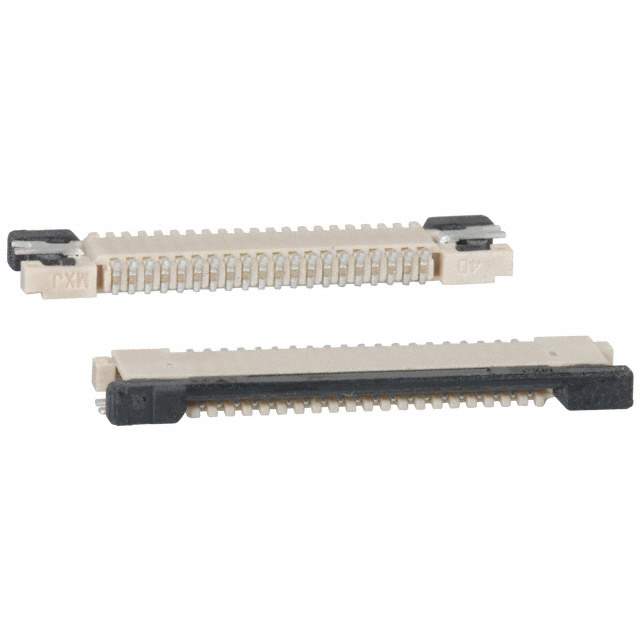

0545482070 Real Image
Same model may have multiple batches, images only for reference.

0545482070

Part No 0545482070
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 20POS 0.50MM R/A / 20 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer Molex
Packaging Reel - TR
Product Status Obsolete
Flat Flex Type FFC, FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 20
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.047" (1.20mm)
Locking Feature Flip Lock
Cable End Type Straight, Tapered
Contact Material Phosphor Bronze
Contact Finish Tin Bismuth
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Polyphenylene Sulfide (PPS)
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -20°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness 8.00µin (0.203µm)
Base Product Number 054548
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number 54548-2070-C,054548-2070-C,WM9214CT,WM9214CTINACTIVE,054548-2070,0545482070-ND,54548-2019,545482070,WM1550-ND,WM9214TR,54548-2070,WM1550,54548-2070-ND,545482070-C,0545482070-C
Standard Package 3,000
Win Source Part Number 1333347-0545482070
Ultra Librarian 3D Model Ultra Librarian 0545482070 CAD Model

Description

The 0545482070 is a 20-position FFC/FPC connector assembly manufactured by Molex.

  • Manufacturer: Molex
  • Positions: 20
  • Application: LCD displays, printers, and digital cameras
  • Feature: Zero Insertion Force (ZIF)
  • Mechanism: Flip Lock
  • Package: Surface-Mount
  • Market Popularity: Medium
