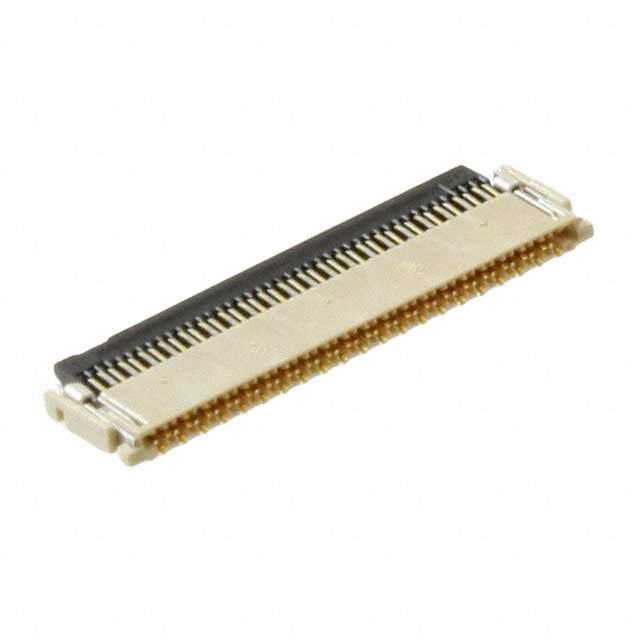

5022504191 Real Image
Same model may have multiple batches, images only for reference.

5022504191

Part No 5022504191
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC 41POS 0.3MM R/A / 41 Position FPC Connector Contacts, Top and Bottom 0.012" (0.30mm) Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Assemblies
Mfr Molex, LLC
Series BackFlip, Easy-On 502250
Package Tape & Reel
Product Status Obsolete
Flat Flex Type FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 41
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.035" (0.88mm)
Locking Feature Flip Lock, Backlock
Cable End Type Notched or Tabbed
Contact Material Copper Alloy
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material Polyphenylene Sulfide (PPS), Glass Filled
Features -
Voltage Rating 50V
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.2A
Contact Finish Thickness -
Housing Color Natural
Actuator Color Black
Mating Cycles 10
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4051
Standard Package 3,000 pcs
Win Source Part Number 1380857-5022504191
Ultra Librarian 3D Model Ultra Librarian 5022504191 CAD Model

Description

The 1380857-5022504191 is a 41-position FFC, FPC (Flat Flexible) Connector Assembly from Molex, LLC.

  • Series: BackFlip, Easy-On 502250
  • Pitch: 0.012" (0.30mm)
  • Termination: Solder
  • Contact Finish: Gold
  • Housing Material: Liquid Crystal Polymer (LCP), Glass Filled
  • Voltage Rating: 50V
  • Current Rating: 0.2A
  • Mounting Type: Surface Mount, Right Angle
  • Temperature Range: -25°C ~ 85°C
  • Locking Feature: Flip Lock, Backlock
  • Cable End Type: Notched or Tabbed
