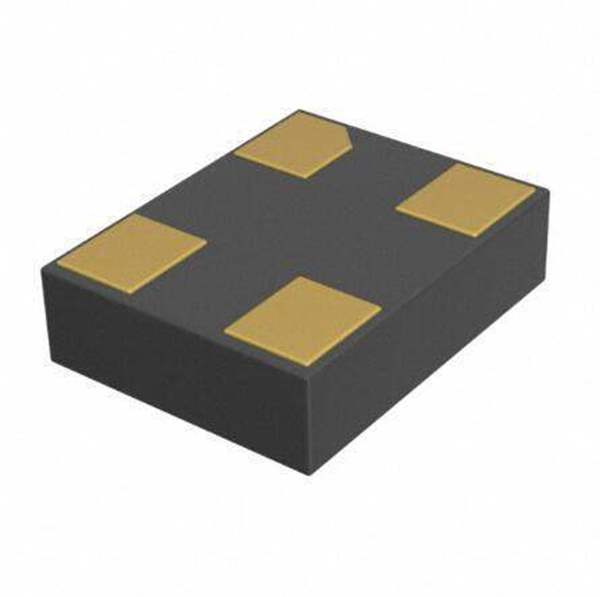

DSC1001DL5-030.0000T Microchip Technology
Same model may have multiple batches, images only for reference.

DSC1001DL5-030.0000T

Part No DSC1001DL5-030.0000T
Manufacturer Microchip Technology
Catalog Oscillators
Description MEMS OSC XO 30.0000MHZ CMOS SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Microchip Technology
Category Crystals, Oscillators, Resonators Oscillators
Packaging  Strip
Part Status Active
Base Resonator MEMS
Function Standby (Power Down)
Output CMOS
Voltage - Supply 1.8V ~ 3.3V
Operating Temperature -40°C ~ 105°C
Current - Supply (Max) 10.5mA
Mounting Type Surface Mount
Win Source Part Number WS1211285-DSC1001DL5-030.0000T
Ultra Librarian 3D Model Ultra Librarian DSC1001DL5-030.0000T CAD Model

Description

The DSC1001/3/4 is a silicon MEMS based CMOS family of oscillators that offers excellent jitter and stability performance over a wide range of supply voltages and temperatures. The device operates from 1 MHz to 150 MHz with supply voltages between 1.8 to 3.3 volts and temperature ranges up to –40°C to 105°C.
